New LUL Approved Flexible Flexicon LTPLFH Low Fire Hazard Liquid Tight Conduit

By Chris Dodds on 8th September, 2014

Follow us on LinkedIn

New LUL Approved Flexible Flexicon LTPLFH  Low Fire Hazard Liquid Tight Conduit

Flexicon Conduit

LUL Approved Low Fire Hazard Liquid Tight Flexible Conduit

Flexicon Flexible Conduits - Interactive Catalogue



Flexicon Flexible Conduits were delighted to present, Flexicon LTPLFH, the latest LUL London Underground ‘approved for use’ liquid tight flexible conduit for the first time at Railtex. With an IP rating of up to IP69k and a low fire hazard rating, Flexicon LTPLFH offers compliance with LU standard 1-085 for limited and dispersed applications.

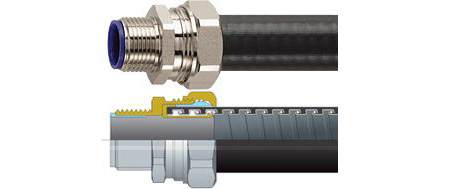

Flexicon LTPLFH Low Fire Hazard Coated Liquid Tight Conduit



Flexicon LTPLFH Low Fire Hazard Coated Liquid Tight Conduit Features

  • High mechanical strength
  • Good flexibility
  • IP rating: IP66 + IP67+ IP68 (5 bar) + IP69K
  • Smooth wipe clean outer cover
  • Cover does not wrinkle when bent
  • Temperature range: LTPLFH -25°C to +90°C
  • Resistant to oils and greases
  • UV resistant (black) and suitable for external use
  • Nickel plated brass or stainless steel fittings



Flexicon LTPLFH low fire hazard conduit system would typically be used in public buildings where there is a need for low fire hazard performance and where liquid tight is a requirement. It can be used with the company’s wide range of liquid tight fittings and its new range of EXD flameproof barrier glands.

Says Tim Creedon, sales and marketing director for Flexicon: “Flexicon has more LUL approved flexible conduit systems than any other manufacturer. Also because we manufacture in the UK we can respond more quickly with product and technical help and can accommodate specials more quickly, whether this is to supply cut lengths or perhaps even ready made assemblies.”



Flexicon LTPLFH Liquid Tight Conduit Specifications
Part No.

Nom Size

Reel Len

Outside ø

Inside Bend Rad

Flexicon LTPLFH16 16 25m

17.8mm

60mm

Flexicon LTPLFH20 20 10m 25m

21.1mm

100mm

Flexicon LTPLFH25 25 10m 25m

26.4mm

130mm

Flexicon LTPLFH32 32 25m

33.1mm

0
