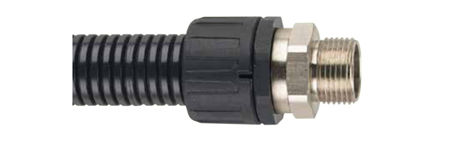

Flexicon FPA & FPAX Flexible Conduit Fittings

Flexicon Flexible Conduit Fittings

Flexicon FPA & FPAX Conduit Fittings



Flexicon has extended its range of FPA and FPAX fast fit flexible conduit fittings to include integrated cable glands that provide cable strain relief when using non-metallic flexible conduit systems. Flexible conduit is installed into Flexicon FPA and Flexicon FPAX fittings by simply pushing it into place and twisting to secure.

Flexicon FPA & FPAX Flexible Conduit Fittings

The all round teeth on the fitting provide a secure fit with a high pull off strength of 70kg with the 21mm Flexicon FPAH flexible conduit. The Flexicon conduit system has been vibration and shock tested to EN61373 Cat 2 and is tamper resistant to help maintain system integrity.



Flexicon Flexible Conduit Fittings FPA Properties

  • 1 part fast fit
  • IP rating: IP66
  • Vibration and shock tested to EN61373 Cat 2
  • Tamper resistant
  • All round teeth give high pull off strength 70kg with Flexicon FPAH21
  • Can be removed using a screwdriver
  • Both 90° and 45° elbows incorporate swept bore to facilitate cable installation and protect cables when installed
  • Suitable for fine and coarse pitch conduits
  • Temperature range -50°C to +135°C
  • Low Fire Hazard (LFH)
  • Halogen, sulphur and phosphorus free
  • Available in black or grey (RAL 7031)



Flexicon Flexible Conduit Fittings FPA

Flexicon Flexible Conduit Fittings FPAX Properties

  • Fast fit
  • Supplied with additional conduit seal & retained face seal
  • Face seal details: Nylon and Brass external threads supplied with Polyester elastomer washer, UNEF and Flange supplied with O-ring
  • IP rating: for conduit & fitting IP66 + IP67 + IP68 (2 bar) + IP69 for cable gland: IP68 (10 bar)+IP69
  • Vibration and shock tested to EN61373 Cat 2
  • Tamper resistant
  • Both 90° and 45° elbows incorporate swept bore to facilitate cable installation and protect cables when installed
  • Can be removed using a screwdriver
  • All round teeth give high pull off strength 70kg with FPAH21
  • Both 90° and 45° elbows incorporate swept bore to facilitate cable installation and protect cables when installed
  • Suitable for fine and coarse pitch conduits
  • Temperature range: conduit fitting: -50°C to +135°C cable gland: -40°C to +100°C static, -20 ̊C to +100°C dynamic
  • Low Fire Hazard (LFH)
  • Halogen, sulphur and phosphorus free



Flexicon Flexible Conduit Fittings FPAX



T&D are Approved Stockists and Distributors for the Flexicon range of Flexible Conduits including hazardous area EXD flameproof conduits, liquid tight conduits, low fire hazard conduits, industrial conduits and flexible metallic conduits with optional coating or braiding protection.

Flexible conduit protects and contains power cables, data cables, wiring and fibre optic cables.



Flexicon Flexible Conduit Fittings - FPA

Product Type

 Description Image
Flexicon FPA

Straight external thread

One piece, fast fit, external fitting

Suitable for knockouts or threaded entries

 Flexicon FPA

Flexicon FPA - Flange

One piece, fast fit fitting with nylon swivel flange

 Flexicon FPA - Flange

Flexicon FPA - SBCA

Straight Braid Clamp Assembly fitting

One piece, fast fit, nickel plated brass straight fitting with internal braid clamp assembly for use with braided sleeving inside corrugated conduit

 Flexicon FPA - SBCA

Flexicon FPA - UNEF

One piece, fast fit fitting with anodised aluminium swivel UNEF internal thread for attachment to circular connectors

 Flexicon FPA - UNEF

Flexicon FPA T

T piece with inspection lid

 Flexicon FPA T

Flexicon FPA-45

One piece, fast fit, external threaded 45°; elbow fitting

 Flexicon FPA-45

Flexicon FPA-45 external

One piece, fast fit, swivel, 45°; elbow, nickel plated brass external threaded fitting

 Flexicon FPA-45 external

Flexicon FPA-45 Flange

One piece, fast fit 45°; elbow fitting with nylon swivel flange

 Flexicon FPA-45 Flange

Flexicon FPA-45 internal

One piece, fast fit, swivel, 45°; elbow, nickel plated brass internal threaded fitting

 Flexicon FPA-45 internal

Flexicon FPA-45 UNEF

One piece, fast fit, 45°; elbow fitting with anodised aluminium swivel UNEF internal thread for attachment to circular connectors

 FPA-45 UNEF

Flexicon FPA-90

One piece, fast fit, external threaded 90°; elbow fitting

 Flexicon FPA-90

Flexicon FPA-90 external

One piece, fast fit, swivel, 90° elbow, nickel plated brass external threaded fitting

 Flexicon FPA-90 external

Flexicon FPA-90 Flange

One piece, fast fit 90°; elbow fitting with nylon swivel flange

Flexicon FPA-90 internal

One piece, fast fit, swivel, 90° elbow, nickel plated brass internal threaded fitting

 Flexicon FPA-90 internal

Flexicon FPA-90 UNEF

One piece, fast fit, 90°; elbow fitting with anodised aluminium swivel UNEF internal thread for attachment to circular connectors

 Flexicon FPA-90 UNEF

Flexicon FPA-external

One piece, fast fit, swivel, nickel plated brass external threaded fitting

 Flexicon FPA-external

Flexicon FPA-FPA Coupler

One piece, fast fit, coupler to join corrugated conduits

 Flexicon FPA-FPA Coupler

Flexicon FPA-internal

One piece, fast fit, swivel, nickel plated brass internal threaded fitting

 Flexicon FPA-internal

Flexicon FPA-MPC Coupler

One piece, fast fit, coupler to join corrugated conduit to rigid conduit

 Flexicon FPA-MPC Coupler

Flexicon Flexible Conduit Fittings - FPAX
Product Type

Description


Flexicon FPAX

One piece, fast fit, external threaded fitting with additional conduit seal

 Flexicon FPAX

Flexicon FPAX - 45

Fast fit, external threaded 45°; elbow fitting with additional conduit seal

 Flexicon FPAX - 45

Flexicon FPAX - 45 external

One piece, fast fit, swivel, 45°; elbow, nickel plated brass external threaded fitting with additional conduit seal

 Flexicon FPAX - 45 external

Flexicon FPAX - 45 Flange

Fast fit 45°; elbow fitting with nylon swivel flange with additional conduit seal

 Flexicon FPAX - 45 Flange

Flexicon FPAX - 45 internal

One piece, fast fit, swivel, 45°; elbow, nickel plated brass internal threaded fitting with additional conduit seal

 Flexicon FPAX - 45 internal

Flexicon FPAX - 45 UNEF

Fast fit, 45°; elbow fitting with anodised aluminium swivel UNEF internal thread for attachment to circular connectors with additional conduit seal

 Flexicon FPAX - 45 UNEF

Flexicon FPAX - 90

Fast fit, external threaded 90° elbow fitting with additional conduit seal

 Flexicon FPAX - 90

Flexicon FPAX - 90 external

One piece, fast fit, swivel, 90° elbow, nickel plated brass external threaded fitting with additional conduit seal

 Flexicon FPAX - 90 external

Flexicon FPAX - 90 Flange

Fast fit 90°; elbow fitting with nylon swivel flange with additional conduit seal

 Flexicon FPAX - 90 Flange

Flexicon FPAX - 90 internal

One piece, fast fit, swivel, 90° elbow, nickel plated brass internal threaded fitting with additional conduit seal

 Flexicon FPAX - 90 internal

Flexicon FPAX - 90 UNEF

Fast fit, 90°; elbow fitting with anodised aluminium swivel UNEF internal thread for attachment to circular connectors with additional conduit seal

 Flexicon FPAX - 90 UNEF

Flexicon FPAX - external

One piece, fast fit, swivel, nickel plated brass external threaded fitting with additional conduit seal

 Flexicon FPAX - external

Flexicon FPAX - Flange

One piece, fast fit fitting with nylon swivel flange with additional conduit seal

 Flexicon FPAX - Flange

Flexicon FPAX - internal

One piece, fast fit, swivel, nickel plated brass internal threaded fitting with additional conduit seal

 Flexicon FPAX - internal

Flexicon FPAX - SBCA

One piece, fast fit, nickel plated brass straight fitting with internal braid clamp assembly for use with braided sleeving inside corrugated conduit

 Flexicon FPAX - SBCA

Flexicon FPAX - UNEF

One piece, fast fit fitting with anodised aluminium swivel UNEF internal thread for attachment to circular connectors with additional conduit seal

 Flexicon FPAX - UNEF

Flexicon FPAX Reducer / Stop Plug

Fitting to reduce or blank off outlets with additional seal

 Flexicon FPAX Reducer / Stop Plug

Flexicon FPAX T

Fast fit T piece with inspection lid and additional seals

 Flexicon FPAX T
