Low Fire Hazard Conduit - Flexicon LFH Flexible Conduits

By Chris Dodds on 8th September, 2014

Follow us on LinkedIn

Low Fire Hazard Conduit - Flexicon LFH Flexible Conduits

Flexicon Flexible Conduits

T&D are Flexicon Flexible Conduit Stockist Distributors.



Flexicon's market leading Flexible Conduit Systems are distributed by T&D.

The wide range available not only includes Galvanised Steel LFH Low Fire Hazard Conduits but also PA6 Corrugated Stainless Steel 316 Overbraid Conduits and PA6 Corrugated Nylon, Tinned Copper Overbraid Conduits.

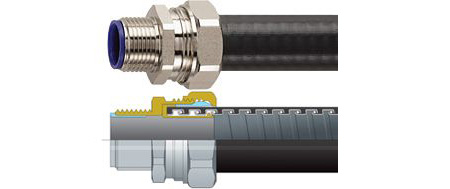

LTPHC Flexicon Flexible Conduits

Low Fire Hazard (LFH) conduit systems are becoming an increasing part of the specification in many cabling applications.

Public buildings, retail outlets, high rise office blocks, hospitals and transport installations including rail and mass transit systems.

Low Fire Hazard flexible conduit systems are require to protect personnel and property in the event of a fire and may be demanded by specifiers, occupiers, fire services and insurers.

Flexicon Flexible Conduits For Low Fire Hazard (LFH) properties:

  • Highly flame retardant to prevent a fire or limit its development
  • Low smoke emission in the event of a fire to enable safe evacuation
  • Low toxicity in event of a fire to prevent public exposure to toxic gases
  • Halogen free gives an indication of low smoke and low toxicity and rules out halogen acid gas emission - acid gas emission can destroy computer equipment and building structures. Halogens are flourine, chlorine, bromine and iodine.

All four properties: Highly Flame Retardant, Low Smoke, Low Toxicity, Halogen Free, must be present to claim LFH as halogen free does not assure low smoke and low toxicity.

A low smoke and fume product may not be self-extinguishing let alone highly flame retardant.



Flexicon Flexible Conduits For Low Fire Hazard (LFH)
Product Type Description Image
Flexicon LFHP

Corrugated galvanised steel with kraft paper lining and smooth extra LFH outer cover

Pliable

Colour black

Flexicon LFHP Low Fire Hazard Conduit

Flexicon LFHU

Galvanised steel, helically wound, flexible steel conduit with Low Fire Hazard (LFH) coating

Colour black

Flexicon LFHU Low Fire Hazard Conduit

Flexicon LFHUBRD

Galvanised steel, helically wound, flexible conduit with extra LFH coating and stainless steel (316) overbraid

Flexicon LFHUBRD Low Fire Hazard Conduit

Flexicon LTBRDLFH

Galvanised steel, helically wound, flexible conduit with galvanised steel braid and oil resistant and high temperature pvc cover

LFH coated & liquid tight

Colour black

Flexicon LTBRDLFH Low Fire Hazard Conduit

Flexicon LTPLFH

Galvanised steel, helically wound, flexible steel conduit with smooth oil resistant Low Fire Hazard (LFH) cover

Liquid tight conduit

Flexicon LTPLFH Low Fire Hazard Conduit
