Flexicon Flexible Conduits - EMC Screening

Flexicon Flexible Conduit

EMC Screening Classifications



Fexicon have over 28 different metal conduit systems to select from ranging from 10mm to 75mm in size. Flexicon metallic conduit & fittings are manufactured in galvanised steel or stainless steel and with or without a range of coverings/overbraiding.

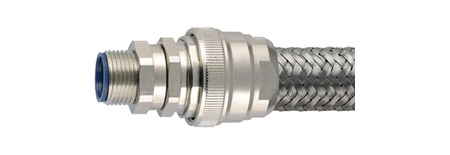

Flexicon Flexible Metallic Conduit & Fttings

Flexicon Flexible Metallic Conduit & Fttings Features & Benefits

  • High compression & pull off strength
  • Wide temperature tolerances
  • High impact strength
  • EMC screening performance
  • High IP rating - up to IP69
  • Suitable for a range of applications including heavy duty
  • Maintains integrity of the system in extreme applications
  • Suitable for a diverse range of operating environments
  • Can withstand impact forces such as falling objects
  • Protection against electromagnetic interference
  • No risk of water or dust ingress



Flexicon Flexible Metallic Conduit & Fttings With EMC Screening
Conduit System IP Rating Ava-ilable

Compr-ession Strength kg / 100mm

20mm nominal size

Pull-off strength kg

20mm nominal size

Min. bend radius

20mm nominal size

Colour Temp range EMC screening @1MHZ

Flexicon

LTBRDP

IP66, IP67, IP68, IP69K

400

130 65 Black -20°C to
105°C
60dB

Flexicon

LTBRDLFH

IP66, IP67, IP68, IP69

400

130 130 Black -25°C to
90°C
60dB

Flexicon

FL

IP40

400

30 35 Zinc -40°C to
120°C
74dB

Flexicon

FLP

IP66, IP67

300

50 35 Black -15°C to
70°C
74dB

Flexicon

LFHP

IP66, IP67, IP68, IP69K

570

100 40 black -25°C to
90°C
74dB

Flexicon

FSB

IP54, IP65

350

120, 300 45 Zinc -15°C to
70°C
55dB

Flexicon

LFHUBRD

IP54, IP65

350

120, 300 45 Stainless steel -25°C to
90°C
49dB

Flexicon

FB

IP40

350

120 45 Zinc -100°C to
300°C
55dB

Flexicon

FUSSB

IP40

400

170 45 Stainless steel -100°C to
300°C
49dB

Flexicon

LTPBRD

IP66, IP67, IP68, IP69K

400

350 45 Stainless steel -45°C to
135°C
49dB

Flexicon

FPRSS

IP67

75

100 45 Stainless steel -40°C to
120°C
49dB

Flexicon

FPRTC

IP67

75

75 45 Tin -40°C to
120°C
67dB

Flexicon

FPISS

IP67

45

100 45 Stainless steel -50°C to
110°C
49dB

Flexicon

FPIHSS

IP67

60

100 45 Stainless steel -50°C to
110°C
49dB
