Filoform MB Resin Branch Cable Joints

By Chris Dodds on 18th February, 2013

Follow @ThorneanDerrick

Straight & Branch Cable Joint Kits

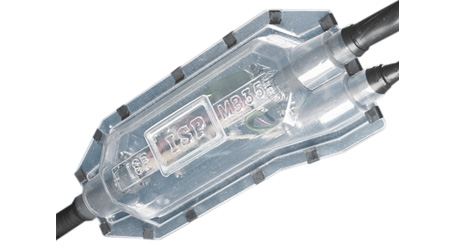

Filoform Resin LV Cable Joints



T&D demonstrate their ability again to solve from stock complex low voltage cable jointing applications, the electrical contractor had a requirement to branch cable joint a 2 core 300sqmm cable onto 2 single core 300sqmm cables. In summary, the cable joint had to accept 3 cables being cut but 4 cores in total with 2 connections inside the cable joint.

Utilising Filoform MB300 Resin Branch Cable Joint with Sicame MF1/3 shearbolt mechanical connectors, T&D were able to complete the delivery of the 10 cable joints within 2-3 days.

Filoform branch cast resin cable joints are suitable for plastic and paper insulated LV cables. These cable joints are suitable for use in power, telecoms and signalisation and are approved in accordance with the standard DIN EN 50393 (VDE 0278-393):2006-11



Filoform Resin Branch Cable Joint Features

• The cast resin joints correspond to DIN VDE 0278 and can be used on all polymeric- and paper-insulated cables
• With hydrolysis-resistant PUR-cast resin
• Longitudinal and cross-waterproof
• High quality polycarbonate moulds
• Transparent 2-piece, cylindrical shells with pre-installed sealing strips
• Illustrated mounting instruction
• Simple and fast fitting
• Saves time and costs

Filoform Resin Branch Cable Joint Specifications

Item Number	Cable Diameter	Dimensions
Filoform MB6	Ø 10mm - 22mm	220mm x 76mm
Filoform MB16	Ø 10mm - 30mm	282mm - 100mm
Filoform MB35	Ø 15mm - 30mm	360mm - 100mm
Filoform MB70	Ø 15mm - 40mm	390mm - 120mm
Filoform MB120	Ø 15mm - 50mm	570mm - 160mm
Filoform MB300	Ø 45mm - 75mm	740mm - 250mm
