Filoform Smart Cable Joints - IP68 Waterproof Branch Cable Joints

LV Resin Cable Joints

Filoform Smart Gel Joint Branch

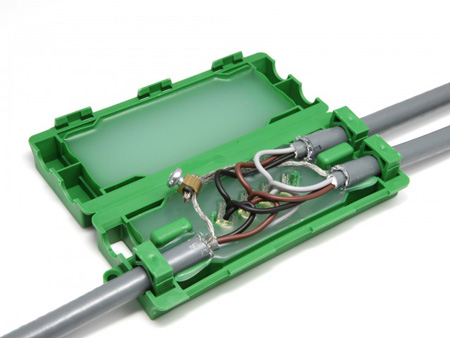

Filoform Smart Joint is a cable joint which is pre-filled with an insulating and waterproof filling mass, suitable for cable diameters up to 15.7mm (0.62 inch); 4 x 2.5mm². The Filoform Smart Joint can be used inside and outside as well as underground cable jointing. Smart Joints suit XLPE, PVC, HO7, Un-armoured cables. IP 68 (EN 60529: 1989 + A1: 1999) cable joints.

Filoform Smart Gel Joint Branch - Waterproof

Filoform Smart Gel Joint Branch Features

  • Type tested according to: EN 50393:2006-11
  • Quick and easy installation
  • Ready to use; the Smart Joint is being supplied "pre-filled" with the insulating filling mass
  • (double) branch off joint provided with 4 pre-installed connectors and one earth connector
  • Fully sealed for water penetration
  • Environmental friendly
  • No shelf life
  • Provided with cable clamps
  • Provided with 2 holes for easy installation
  • CE-approval



Filoform Smart Gel Cable Joints Specifications

Cable Diameter

5mm - 15.7mm

Cable Capacity

max. 4 x 2.5mm²

Cable Types

XLPE, PVC, HO7, Any Un-armoured cable

Temperature Resistance

-25°C to +70°C

Dimensions

170mm x 73mm x 37mm

Connectors

for solid copper cores, not stranded

Branch-Off Joint Only

4 x 0.75mm² to 4 x 2.5mm²

Branch-Off Joint Only

400 V - 24 A / 2.5mm²

IP-Value

IP 68 (EN 60529: 1989 + A1: 1999)

Approval

CE-approval

Tested According To

EN 50393 : 2006-11
