Heavy Duty Lucy Zodion Double Door Feeder Pillars Supplied To British Gas

By Chris Dodds on 18th July, 2012

Follow @ThorneanDerrick



Power Distribution & Feeder Pillars

Today, Thorne & Derrick supplied a British Gas site in Solihull with a size 14 double door heavy duty Lucy Zodion feeder pillar.

The feeder pillar was selected from the Lucy Fortress galvanised steel range and 5mm in thickness.

Pictured: Solihull Community Housing

Standard feeder pillars are 3mm thick, 5mm pillars are very robust and preferred for maximum impact resistance, security and vandal deterrence.

The feeder pillar will be painted grey, delivered complete with root section, 18mm plywood backboard, internal cable gland plate, infill panel and yale lock.

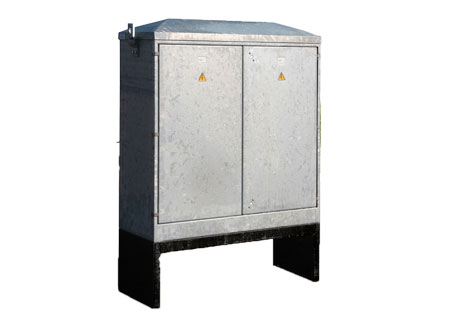

Pictured: Lucy Zodion Fortress Double Door Feeder Pillars

Lucy Lighting Fortress Double Door Feeder Pillars are robust pillars providing low voltage electricity distribution for a variety of applications.

The feeder pillars incorporate a high level of corrosion resistance to ensure durability and a long maintenance free life.

Lucy Zodion Fortress Double Door Feeder Pillar Features

• Long life solid stainless steel hinge blocks on all versions
• Three vandal resistant fully flush hinges per door
• Two Lucy wedge locks fitted as standard
• Backboard made from 18mm treated exterior grade plywood
• Detachable roof with lifting hooks on pillar body
• ‘Danger’ warning label fitted in door recess
• Detachable root section finished in bitumen enriched paint
• Earth lead between pillar body and door
• High quality UV resistant paint to an average thickness of 60 microns
• Door seal to IP65

Part number for the feeder pillar: 14-HDP-5-ABD  (Size 14 Pillar Size, Hot dip galvanised and painted, 5mm thickness, Internal gland plate, In fill panel for root section (standard colour: black) and yale lock)

Pictured: Ordering Process For Lucy Double Door Feeder Pillars

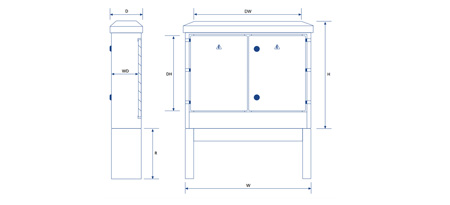

Lucy Fortress Galvanised Steel Feeder Pillars Size 14 Technical Data

Height Above Ground	1300mm
Root Section (R)	380mm
Width (W)	1250mm
Depth (D)	450mm
Door Opening Height (DH)	980mm
Door Opening Width (DW)	1148mm
Working Depth (WD)	375mm
Backboard Size (WxH)	1225mm x 1085mm
Weight (Kg) (3mm thickness)	176mm
Stock Code (Galv)	THM0024672
Stock Code (3mm Painted Grey)	THM0024673

Lucy Lighting Fortress Feeder Pillars including Single Door Feeder Pillars, Double Door Feeder Pillars, Mini Feeder Pillars & Slimeline Feeder Pillars.

• Further Reading

Fortress Feeder Pillars Specified & Supplied To Environment Agency

GRP Roadside Feeder Pillars Specified & Delivered To Alton Towers UK
