Single Door Feeder Pillars - Galvanised & Stainless Steel

Lucy Lighting Fortress Single Door Feeder Pillars are robust pillars providing low voltage electricity distribution for a variety of applications.

The feeder pillars incorporate a high level of corrosion resistance to ensure durability and a long maintenance free life. A wide variety of Lucy feeder pillars are available.

Lucy Lighting Fortress Single Door feeder pillars are available in 6 sizes in both mild and stainless steel.

Mild steel feeder pillars can be obtained in two panel thicknesses with a choice of a hot dip galvanised finish or hot dip galvanising followed by paint.

When ordering stainless steel feeder pillars, the customer can specify the grade of stainless steel and finish required.

Lucy Lighting Fortress single door feeder pillars are available with following optional extras : internal gland plate, in fill panel for root section, yale lock, hasp and staple, heater kit, 13amp socket kit and lighting kit.

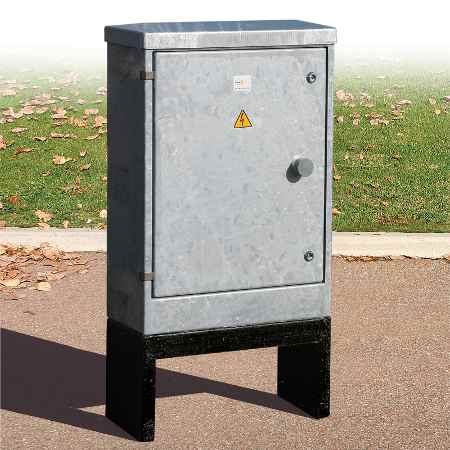

Pictured: Lucy Lighting Fortress Feeder Pillars - Single Door Pillars

Lucy Lighting Fortress Feeder Pillars - Single Door Pillars

Lucy Lighting Fortress Single Door Feeder Pillar - Specification :

  • Long life hinges made from solid stainless steel
  • Two tri-head locks fitted as standard
  • Backboard made from 18mm thick treated plywood
  • Detachable root section finished in bitumen enriched paint
  • Danger warning label fitted in a recess in the door
  • Earth lead connection supplied from feeder pillar body to door
  • HDP feeder pillars powder coated grey as standard
  • High quality UV resistant paint to a minimum 60 microns thickness
  • Feeder pillar door seal up to IP65
  • Detachable feeder pillar roof
Lucy Lighting Fortress Feeder Pillars - Single Door Pillars - Product Range
Pillar Size 05 06 08 09 10 12
Height (H) Above Ground 791mm 636mm 836mm 1088mm 1194mm 1294mm
Root Section (R) 350mm 300mm 300mm 350mm 350mm 350mm
Width (W) 310mm 400mm 600mm 661mm 800mm 1100mm
Depth (D) 220mm 180mm 250mm 281mm 350mm 400mm
Door Opening Height (DH) 585mm 410mm 610mm 860mm 907mm 1007mm
Door Opening Width (DW) 200mm 300mm 500mm 550mm 700mm 1000mm
Working Depth (WD) 170mm 155mm 225mm 225mm 325mm 375mm
Backboard Size (WxH) 650mm x 300mm 390mm x 475mm 590mm x 675mm 640mm x 930mm 790mm x 975mm 1080mm x 1075mm
Weight (kg) (3mm thickness) 36kg 42.5kg 71.5kg 84kg 108kg 142kg

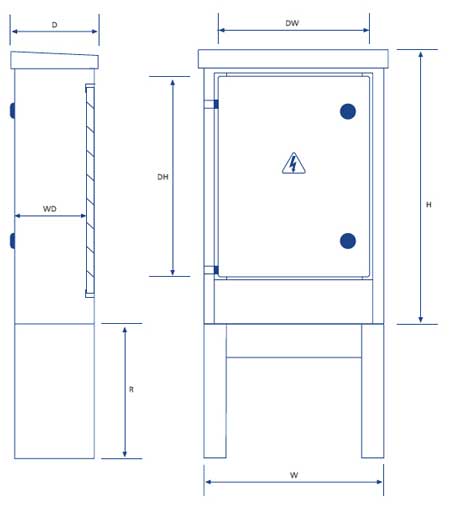

Pictured: Lucy Lighting Fortress Feeder Pillars - Single Door Pillars - Dimensions Illustration

Lucy Lighting Fortress Feeder Pillars - Single Door Pillars - Dimensions Illustration
