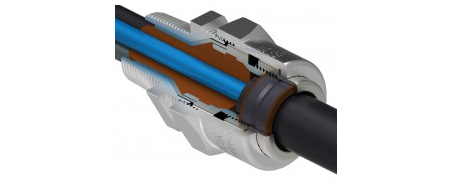

Prysmian Barr-A Explosion Proof Glands - 424UN Series



Prysmian 424UN cable glands are suitable for unarmored RW 90 type & (TC) tray cables. Prysmian Barr-A glands aid the control of migrating gases and is the best choice for when the highest level of hazard protection is required.

Suitable for hazardous area locations Class 1 Division 2 Groups A&B, Class 1 Division 2 Groups C&D, Class II Division 2 Groups E, F & G.

Prysmian 424UN Barr-A Explosion Proof Gland Features

• Fast, easy installation
• Large sealing range
• Space and weight saving
• Tested to UL and CSA standards
• UL Listed for Class 1, division 1 & 2 Applications
• Suitable for unarmoured tray cables - TC-ER-HL & TC-ER
• Suitable for unarmored tray cables – category TC-ER-HL & TC-ER
• Aluminum construction with nickel plated brass inner components
• Compound forms barrier around individual cores, so preventing migration of gases through the centre of the cable
• For use in most climatic conditions, rated to IP66 for wet locations
• For use with explosion proof equipment in Zone 1 and 2 hazardous areas and for Class I, Div 1 & 2 applications
• Equivalent European designs available: Approved to European & IECEx standards

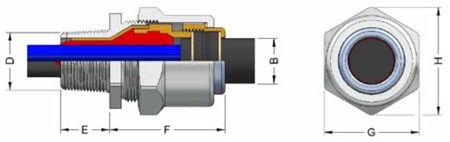

Prysmian 424UN Barr-A Explosion Proof Gland Specifications

Design Reference	Hub Size NPT D	Cable Dimensions Overall ø B	Gland Dimensions				Weight
			Hub Length E	Protusion Length F	Hexagon
					A/F G	A/C H
Prysmian Bicon 424UN-02	½"	0.35" - 0.62"	0.85"	1.85"	1.42"	1.57"	0.5lbs
Prysmian Bicon 424UN-03	¾"	0.51" - 0.76"	0.86"	1.96"	1.67"	1.89"	0.5lbs
Prysmian Bicon 424UN-04	1"	0.67" - 1.06"	1.07"	2.08"	1.86"	2.11"	0.75lbs
Prysmian Bicon 424UN-05	1¼"	0.95" - 1.26"	1.10"	2.16"	2.22"	2.42"	1.25lbs
Prysmian Bicon 424UN-15	1½"	0.95" - 1.26"	1.11"	2.16"	2.22"	2.42"	1.25lbs
Prysmian Bicon 424UN-06	2"	1.14" - 1.65"	1.15"	2.32"	2.76"	3.04"	1.75lbs
Prysmian Bicon 424UN-07	2½"	1.61" - 2.08"	1.70"	2.24"	3.15"	3.44"	2.25lbs
Prysmian Bicon 424UN-08	3"	1.96" - 2.42"	1.76"	2.83"	3.89"	4.30"	4.25lbs
Prysmian Bicon 424UN-09	3½"	2.15" - 2.91"	1.81"	2.91"	4.18"	4.50"	5.5lbs
