Ensto Cold Shrink MV Substation Cable Termination (24kV XLPE Single Core)

By Chris Dodds on 11th March, 2016

Follow @ThorneanDerrick

Image: Morteza Sobhani - Expert Technical Support & Installation High Voltage Products

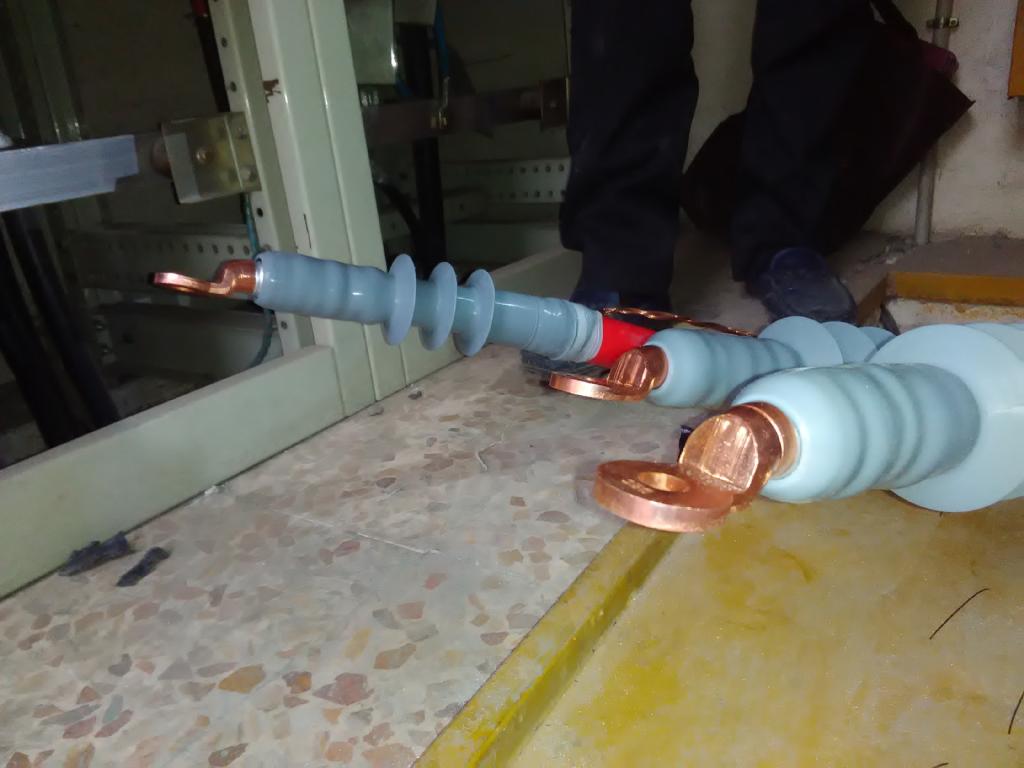

Pictured: Ensto Cold Shrink MV Substation Cable Termination (24kV XLPE Single Core)







Ensto Cold Shrink (MV HV Indoor Termination)

Cable stripping dimensions should be carefully observed by the MV cable jointers and the correct cable jointing tools used to remove sheath, insulation and semi-conductive screens.

Andy O'Malley commented "Nice clean tidy work area - silicone tape applied at the bottom of the cold shrink termination"
