20kV Ensto Cold Shrink Cable Terminations For High Voltage Substations

By Chris Dodds on 18th February, 2016

Follow @ThorneanDerrick

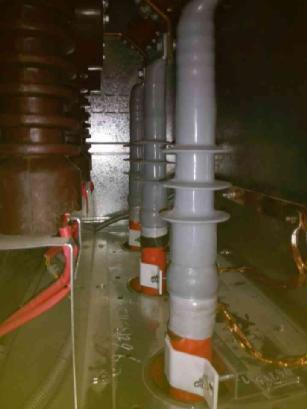

Pictured : Ensto Cold Shrink Cable Terminations installed in preference to heat shrink terminations due to limited working space in high voltage electrical panels.

Location : Roodaki Substation, Tehran, Iran.

Image via : Morteza Sobhani (Expert Technical Support & Expert Installation of High Voltage Products)

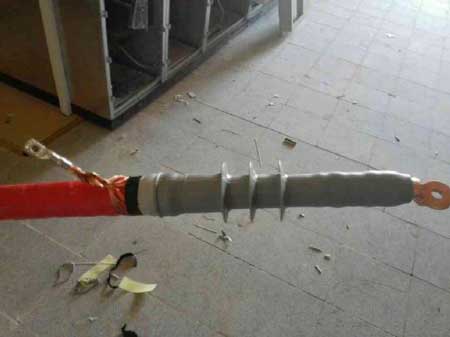

Ensto Cold Shrink (MV HV  Indoor Termination) Single Core 300sqmm 24kV

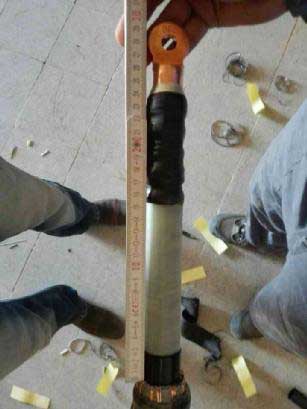

Ensto Cold Shrink (MV HV Indoor Termination) Single Core 300sqmm 24kV. Cable stripping dimensions should be carefully observed by the MV cable jointers and the correct cable jointing tools used to remove sheath, insulation and semi-conductive screens.
