Ellis Patents Emperor Cable Cleats Specified For Installation On New Oil Platforms In Brazil

By Chris Dodds on 19th July, 2012

Follow @ThorneanDerrick



Ellis Patents Emperor Cleats

Ellis Patents Stainless Steel Cable Cleats



Ellis Patents Emperor cleats specified for installation on two oil platforms currently being built for use in the oil field off the coast of Brazil.

The two platforms, Petrobras P-59 and P-60, are self-elevating drilling rigs that are capable of drilling under conditions of high pressure and high temperature. The Emperor cable cleats were specified through the Ellis Patents Brazilian distributor and were selected because of their high fault level capability.

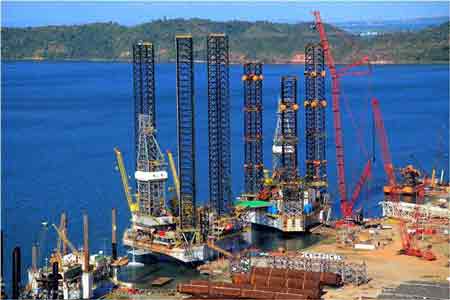

Pictured: Petrobras P59 and P60 Oil Platforms, Brazil

Ellis Patents export sales manager, Tony Conroy, said: “Safety is paramount in any electrical installation, but when the installation in question is going to operate in some of the harshest environments and dangerous conditions in the world it is absolutely vital that every step is taken to safeguard against any potential problems.”

“Our Emperor cleats are specifically designed for this kind of project and have been fully tested so that those installing them can do so with the knowledge that the cables they are being used to restrain will remain safely restrained during any short circuit situation.”

Ellis Patents cable cleats have enjoyed significant export success in the oil and gas markets in recent years.

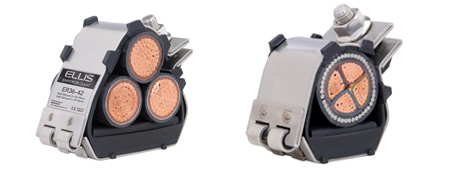

Pictured: Ellis Patents Emperor Cable Cleats



Max S/C Test Level	Cleat Spacing
156kA	600mm
195kA	300mm
235kA	225mm



Ellis Patents Emperor range is easily installed and provide protection in the harshest environments. The Emperor cleat is made using Type 316L stainless steel and available in multiple sizes to suit trefoil or single cables.

The cable cleat also has an integral Low Smoke and Fume Polymeric liner and base pad to protect the cables during short circuit conditions.



Video: Performance Of Ellis Emperor Cleats Under Short Circuit Conditions



• Further Ellis Patents reading

Ellis Patents Cable Guide Clamp - Video

Cable Cleats - The Ellis Patents Black Book Guide To Cable Cleats

Cable Cleats From Ellis Patents - The Innovation Game
