Ellis Patents Phoenix Cable Cleats for FP Fire Resistant Cable Support

By Chris Dodds on 17th August, 2012

Follow @ThorneanDerrick

Fire Proof Resistant Cable Cleats

Ellis Patents Phoenix Cable Clamps For FP Fire Resistant Cable Support

Phoenix stainless steel cable cleats are designed for installation with fire resistant and protection (FP) cables. Specified by the construction industry to reinforce and maintain FP cable circuit integrity. Typical applications include emergency lighting, fire suppression, lift shafts and escape system circuits.

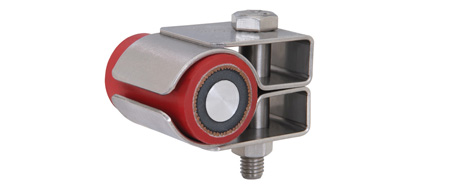

Pictured: Ellis Patents Phoenix Fire Resistant Cable Cleats

Ellis Patent Phoenix range is specifically designed for the installation of Fire Protection (FP) rated cables. The fire resistant cable clamps are made from Type 316L stainless steel with single bolt fixing and are available in 11 sizes to suit single cables from 10mm to 65mm in diameter. The Phoenix cleats tested in accordance with BS 5839-1:2002, Section 26.2d.

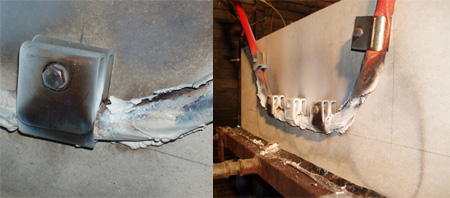

Pictured: Ellis Patents Phoenix Fire Rated Cable Clamp

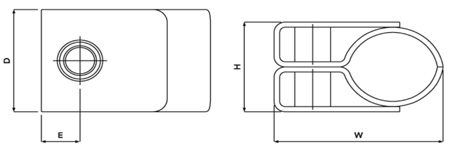

Ellis Patents Phoenix Fire Rated Cable Clamp Specifications

Part No.	Cable Range Dia	Dimensions				Fixing Holes	Weight
		W	H	D	E
Ellis Patents 1FP-10SS	10mm - 13mm	40mm	21mm	40mm	13.7mm	1 x M10	91g
Ellis Patents 1FP-11SS	13mm - 16mm	44mm	24mm	40mm	13.7mm	1 x M10	106g
Ellis Patents 1FP-12SS	16mm - 19mm	47mm	27mm	40mm	13.7mm	1 x M10	113g
Ellis Patents 1FP-13SS	19mm - 23mm	51mm	31mm	40mm	13.7mm	1 x M10	125g
Ellis Patents 1FP-14SS	23mm - 27mm	55mm	35mm	40mm	13.7mm	1 x M10	139g
Ellis Patents 1FP-15SS	27mm - 32mm	60mm	40mm	40mm	13.7mm	1 x M10	153g
Ellis Patents 1FP-16SS	32mm - 38mm	66mm	46mm	40mm	13.7mm	1 x M10	174g
Ellis Patents 1FP-17SS	38mm - 46mm	74mm	54mm	40mm	13.7mm	1 x M10	201g
Ellis Patents 1FP-18SS	46mm - 51mm	80mm	59mm	40mm	13.7mm	1 x M10	225g
Ellis Patents 1FP-19SS	51mm - 57mm	85mm	64mm	40mm	13.7mm	1 x M10	242g
Ellis Patents 1FP-20SS	57mm - 65mm	93mm	73mm	40mm	13.7mm	1 x M10	265g
