CATU Voltage Testers Used By ERDF In Demonstration Video

By on 7th January, 2015

Follow @ThorneanDerrick

CATU Electrical Safety Equipment

CATU IEC Voltage Detectors

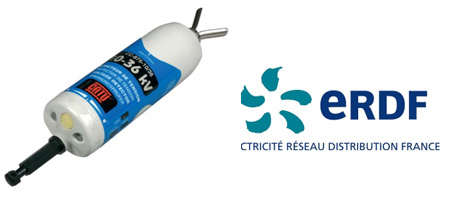

CATU Capacitive MV voltage detectors used by European Regional Development Fund (ERDF)

CATU voltage detectors have been featured in an educational video released by the ERDF. The "Voltage Testing: Safety First" video demonstrates all that there is to know about the testing and proper use of a capactitive detector for 20kV electricity distribution networks.

Recently issued, the video offers clear and educational content, summarizing in a few minutes everything there is to know about voltage testing, operation and proper use of capacitive MV voltage detectors for 20kV distribution networks (in accordance with IEC 61243-1 standard). Stemming from the close co-operation between a key user and key manufacturer, the ERDF video features CATU products in procedures going beyond standards, aiming at preventing unsafe testing of medium voltage networks.

CATU IEC Electronic Voltage Detectors "Compact Series" For Indoor And Outdoor Use

• Precise and stable operating threshold
• High environmental resistance (impacts, vibrations, moisture)
• Temperature conditions: class N (IEC 61243-1 standard)
• Use from 50 to 60 Hz
• Robust housing
• Size of the detector: Ø 59 x 270 mm
• Contact electrodes fitted to the housing by screwing and are easily interchangeable

• Voltage presence is indicated by: red flashing LED and a powerful rated audible signal > 60 dB(A)/2 m.

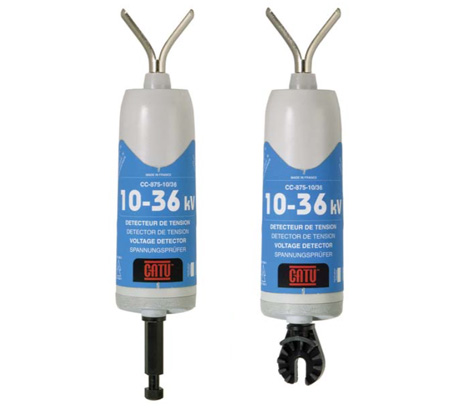

Pictured: CATU CC-875-C and CATU CC-875-K Voltage Detectors



CATU IEC Electronic Voltage Detectors Specifications

Reference	Frequency	Operating Voltage	Battery Type 6 LR 61	Weight
CATU CC-875-5.5/20	50/60Hz	5.5kV - 20kV	9V	450g
CATU CC-875-10/30	50/60Hz	10kV - 30kV	9V	450g
CATU CC-875-10/36	50/60Hz	10kV - 36kV	9V	450g
CATU CC-875-11/33	50/60Hz	11kV - 33kV	9V	450g



Video : CATU Electrical - Medium Voltage (MV) Detectors Used By European Regional Development Fund (ERDF)

Video : Voltage Detector- CATU CC363-K 5-36kV
