Catu CC-875 IEC Electronic Voltage Detectors Selected For Devon Fullabrook Substation Wind Farm

By Chris Dodds on 22nd August, 2012

Follow @ThorneanDerrick

Catu Electrical Safety Equipment

Catu CC-875-10/36kV Voltage Detector

T&D have supplied high voltage CATU voltage detectors and electrical safety equipment to Devon Wind Farm's Fullabrook Substation. The Catu IEC voltage detectors will be used by ESB EI Renewables for carrying out high voltage maintenance and routine work on substations, switchgear and electrical equipment.

Pictured: Fullabrook Substation Wind Farm, Devon

Image : Western Morning News

Devon Wind Power Ltd owns the Fullabrook Wind Farm situated between Barnstaple and Ilfracombe in North Devon in an area surrounding Fullabrook Down. Fullabrook Wind Farm consists of 22 turbines of each of up to 3 megawatts capacity. It is estimated that the wind farm will provide sufficient electricity for nearly 30,000 domestic households.

Following planning permission being granted in October 2007, Fullabrook Wind Farm was constructed and commissioned in 2011. In July 2009, ESB Wind Development UK acquired Devon Wind Power Limited and is now fully responsible for the project. The ultimate parent company of ESB Wind Development UK is the Electricity Supply Board (ESB). Headquartered in Dublin, ESB is Ireland's state-owned electricity utility with significant international energy interests. ESB’s corporate strategy is to halve its current carbon emissions within 12 years and achieve carbon net-zero emissions by 2035.

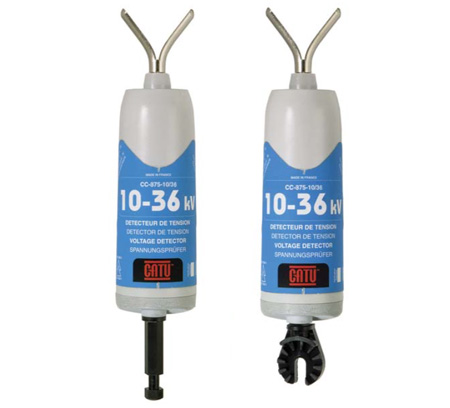

Pictured: CATU CC-875-C and CATU CC-875-K Voltage Detectors

Catu IEC Electronic Voltage Detectors Compact Series - Indoor & Outdoor Use

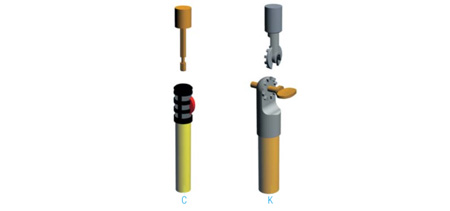

Catu voltage detectors are compact and light, offersing a wide band 10/36 kV. Catu voltage detectors have two end fittings:

1. C = hexagonal 12mm, for hex. end-fitting sticks
2. K = universal, for universal end-fitting sticks

Catu IEC Electronic Voltage Detectors 10/36kV Characteristics

• Precise and stable operating threshold
• High environmental resistance (impacts, vibrations, moisture)
• Temperature conditions: class N (IEC -61243-1 standard)
• Use from 50 to 60 Hz
• Robust Housing
• Size of the detector: Ø 59mm x 270mm
• Contact electrodes fitted to the housing by screwing and are easily interchangeable
• Red flashing LED (very bright -visible at more than 20 m in direct lighting) and powerful rated audible signal > 60 dB(A)/2m



Catu IEC Electronic Voltage Detectors Specifications

Reference	Frequency	Operating Voltage	Weight
CATU CC-875-5.5/20	50/60 Hz	5.5kV - 20kV	450g
CATU CC-875-10/30	50/60 Hz	10kV - 30kV	450g
CATU CC-875-10/36	50/60 Hz	10kV - 36kV	450g
CATU CC-875-11/33	50/60 Hz	11kV - 33kV	450g



• Further Reading

Invitation

Thorne & Derrick are inviting you to join LinkedIn’s fastest growing Discussion Group : Low & High Voltage Power, Cabling, Jointing, & Hazardous Area Electricals (LV-HV).

Discussion subjects include cable installations, cable jointing, electrical substation, overhead line and electrical construction at LV, 11kV, 33kV and EHV.

Network, engage and promote your profile, company or products with over 10,000 influencers.



CATU IEC Voltage Detectors For Indoor And Oudoor Use
