Quick Delivery Of Hot Pour Compound G101 To The Georgia-Pacific Paper Mill

By Chris Dodds on 12th July, 2012

Follow us on LinkedIn

Quick Delivery Of Hot Pour Compound G101 To The Georgia-Pacific Paper Mill

HV Cable Jointing & Terminating

Hot Pour Compounds to BS1858

G101 Transformer & Cable Box Filling Compound 11kV



G101 cable box bitumen compound is used extensively for filling 11kV high voltage switchgear and transformer termination boxes.

At the Georgia-Pacific Paper Mill in Bury an oil spill had caused the existing cable compound to deteriorate to the extent it needed replacing. Georgia-Pacific is one of the leading producers of tissue, paper, packaging and building products in the world.

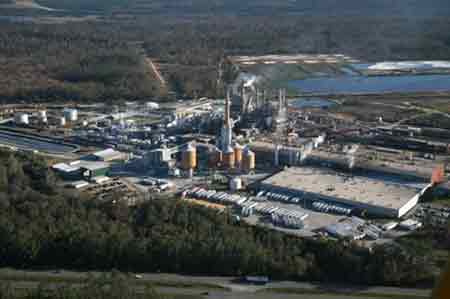

Pictured: Georgia-Pacific Paper Mill

 Georgia-Pacific Paper Mill

The G101 hot pour compound was delivered overnight by T&D to enable re-filling of the 11kV cable boxes.

G101 stocked by Thorne & Derrick is used by HV contractors involved in the installation, maintenance and refurbishment of high voltage distribution transformers and switchgear up to 11kV. Prysmian G101 hot pour bitumen compound requires heating prior to pouring. Protective clothing should be worn to prevent accidental skin burns, this should include gloves, boots, overalls and eye protection. G101 compound is UK Power Networks approved.

Prysmian G101 Hot Pour Compound Technical Data

Softening Point

52º​C - 58ºC

Pouring Temperature Range

120​º​C - 130º​C

Suitable For Use With

PVC & MDPE Cable Sheaths

Impulse Voltage Tested To

179kV peak at 21º​C

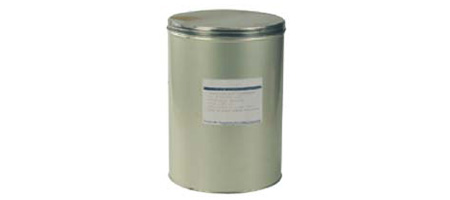

Pictured: Prysmian Hot Pour Compounds to BS1858

Pressmen G101 - Hot Pour Compounds to BS1858


G101 hot pour bitumen compound should be heated in a clean and dry compound bucket stopping carbonised deposits being introduced into the new compound. The hot pour compound will tend to contract on cooling and it is necessary for a "top-up" pouring to complete the operation.



Prysmian Hot Pour Compounds To BS1858

Reference Number

Description

Prysmian F70208-66

G8 (10 Kg)

Prysmian F70021-66

G21 (10 Kg)

Prysmian F70083-67

G83M (10 Kg)

Prysmian F70201-66

G101 (10 Kg)

Prysmian F70162-66

G123 (10 Kg)
