LV Resin Cable Joints

CTL Mains Branch Cable Joints - CU Range



CTL CU Range of low voltage resin cable joints are suitable for PVC or XLPE cable of up to 1kV.  CTL CU cable joints are “Universal” joints for branch & straight jointing.

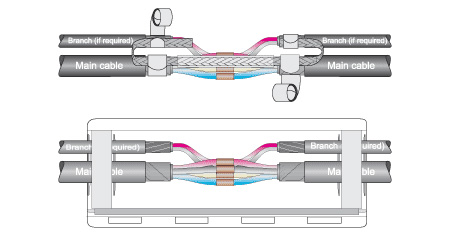

Pictured: CTL CU Universal Mains Branch Cable Joints

CTL CU Branch Cable Joints Armoured & Unarmoured Cable - Uncut Main

Basic Joints Part No	Basic Joints plus Mech. Connectors Part No.	Main Cable Size 2,3 & 4 core	Max Branch Cable 2,3 & 4 core
CU0	CU0+C	1.5mm² - 25mm²	1 x 25mm²
CU1	CU1+C	4mm² - 6mm²	2 x 6mm²
CU2	CU2+C	10mm² - 25mm²	2 x 25mm²
CU3	CU3+C	35mm² - 50mm²	2 x 35mm²
CU4	CU4+C	70mm² - 95mm²	2 x 35​mm²
CU5	CU5+C	120mm²  - 185mm²	2 x 35​mm²
