CTL CB0 Low Voltage Y Branch-Off Resin Joint

By Chris Dodds on 19th August, 2012

Follow @ThorneanDerrick

Low Voltage Resin Cable Joints

CTL CB0 Y Branch Cable Joint Kit - Low Voltage 0.6/1 (1.2)kV



CTL CB0 Cathodic Protection Cable Joints is a “Y”-shaped cable joint for horizontal branch jointing applications. These CTL cable joints are approved by many oil and utility companies throughout the world and are used for jointing of single core DC feeder to anode cable for cathodic protection of pipelines, jetties, tanks and buried structures.

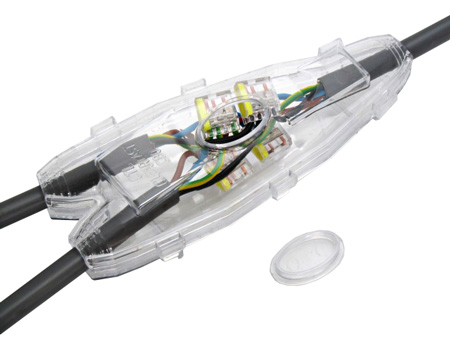

CTL Y Branch-Off Cable Joint

CTL Y Branch-Off Low Voltage Cable Joint Features

• In conformity with EN 50393:2006-11
• Hydrolysis resistant polyurethane resin in transparent 2-component bag
• Strong transparent plastic shells
• CTL CB0 resin cable joints have excellent resistance against UV, chemicals and alkalines
• Fully waterproof
• Installation instructions and protective gloves inclusive
• Very easy and quick installation

CTL CB0 Y Branch Cable Joint Kit Specifications

Basic Kit -  no connector	Max Cable Size single core	Max Branch single core
Part No
CTL CB0	95mm²	95mm²
