CTL Branch LV Resin Cable Joints - CB Range

By Chris Dodds on 20th August, 2012

Follow @ThorneanDerrick

LV Resin Cable Joints

CTL Mains Branch Cable Joints - CB Range



CTL CB Range of low voltage resin cable joints are suitable for PVC or XLPE cable of up to 1kV.

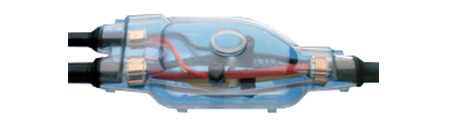

Pictured: CTL CB Mains Branch Cable Joints

CTL CB Mains Branch Cable Joints Armoured & Unarmoured Cable - Uncut Main

Basic Joints Part No.	Basic Joints plus Mech. Connectors Part No.	Main Cable Size 2,3 & 4 core	Max Branch Cable 2,3 & 4 core
CTL CB1	CTL CB1+C	1.5mm² - 16mm²	16mm²
CTL CB2	CTL CB2+C	25mm² - 35mm²	35mm²
CTL CB2.5	CTL CB2.5+C	50mm² - 70mm²	70mm²
