CTL Clearcast Resin Filled Cable Joints Used For Jointing Cables At An Alfalfa Farm In Northern Suda

By Chris Dodds on 11th July, 2012

Follow @ThorneanDerrick

Cable Jointing & Terminating

LV Resin Straight Joints

CTL Clearcast Resin Filled Cable Joints



T&D have supplied 324off CTL Clearcast 1kV resin filled cable joints for cable sizes varying from 4 core 4sqmm to 4 core 185sqmm to a large Alfalfa Farm in Northern Sudan. Alfalfa is known as the ‘queen of forage’; it is one of the highest yielding fodder crops, with the highest relative feed value (RFV). Alfalfa flourishes in Sudan’s hot, dry climate growing all year round.

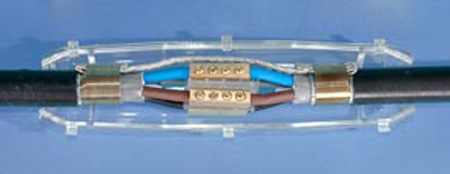

Pictured: CTL LV Resin Cable Joints CM Range

Thorne & Derrick Exports specified CTL Clearcast cable joints and guided the expatriate agricultural engineer representing a UK Agricultural Supply Company through the process of selecting the correct resin cable joints for power cable jointing on the low voltage electrical system. The CTL resin cable joints will be used to joint cables serving vital pumping equipment used to irrigate the crop.

CTL Clearcast low voltage resin cable joints are known throughout the world for their ease of use, practical design and clear instructions.  These resin cable joints are available in an infinite variety of designs shapes and sizes to address all cable jointing requirements. CTL Clearcast resin joints are tested to European CENELEC and German DIN-VDE norms.



CTL CM Range Of LV Resin Cable Joints Specifications

Max Cable Size 4 Core	Basic Joints		Basic Joints Plus Mechanical Connectors
Part No	Earth Kit Included	Part No	Connectors Included​
1.5mm² - 6mm²	CM0	Braid & Constant Force Springs	CM0+C	4 x MC1/0 & Allen Key
10mm² - 16mm²	CM1	Braid & Constant Force Springs	CM1+C	4 x MC1/1 & Allen Key
25mm²	CM2	Braid & Constant Force Springs	CM2+C	4 x MC1/2 & Allen Key
35mm² - 95mm²	CM3	Braid & Constant Force Springs	CM3+C	4 x MC1/3 & Allen Key
120mm²	CM4	Braid & Constant Force Springs	CM4+C	4 x MC1/3 & Allen Key
150mm²	CM5	Braid & Constant Force Springs	CM5+C	4 x MC1/5
185mm² - 240mm²	CM6	Braid & Constant Force Springs	CM6+C	4 x MC1/6
300mm² - 400mm²	CM7	Braid & Constant Force Springs	CM7+C	4 x MC1/7
