LV Resin Cable Joints

CTL Cathodic Protection Cable Joints - CPJ120



CTL CPJ Cathodic Protection Joints are suitable for PVC or XLPE cable up to 1kV. CTL CPJ resin joints are the classic cathodic protection joint for use when upright branch joints are required.

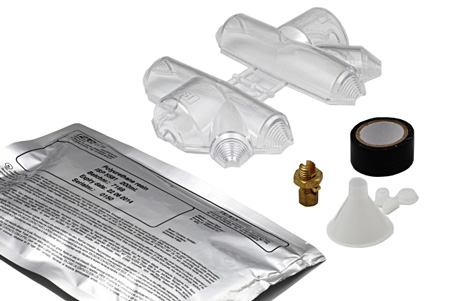

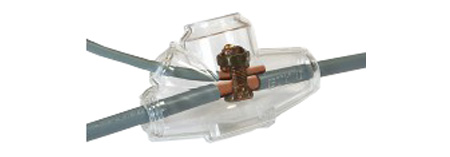

Pictured: CTL CPJ Cathodic Protection Resin Cable Joint

The cathodic protection cable joints have been approved by many oil and utility companies throughout the world. The main applications for these joints include jointing of single core DC feeder to anode cable for cathodic protection of pipelines, jetties, tanks and buried structures.

CTL Cathodic Protection Joint Features

• Strong clear plastic mould body with Snaplock connection for tight seal
• Stepped cable entry cut-off points for all cable diameters
• Large mould shell enables crimp or split bolt / line tap connectors to be used
• High quality resin sealing compound has a high resistance to moisture absorption, is mixed in a clear pack and stored in an aluminium protective bag.
• The long-term electrical properties of the resin sealing compound result in a more reliable connection without any associated maintenance costs
• Resin sealing compound is suitable for all climate conditions
• Designed to meet the requirements of BS 7888:1998
• Specified by leading oil, gas and water companies and consulting engineers

CTL Cathodic Protection LV Resin Cable Joint Specifications

Basic Kit -  no connector  Part No	Kit with Split-Bolt Line-Tap  Part No	Max Cable Size single core	Max Branch single core
CTL CPJ120	CTL CPJ120+C	120mm²	95mm²
