Baur DC High Voltage Test Sets PGK 50/80 Ordered For ArcelorMittal Liberia Mining Project

By Chris Dodds on 30th July, 2012

Follow @ThorneanDerrick



Baur - Cable Fault Locator

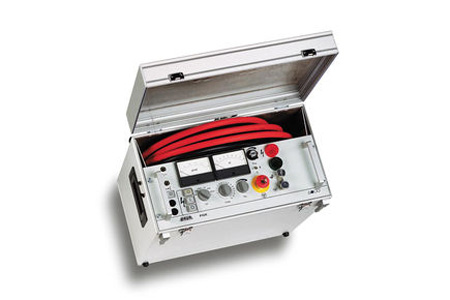

Baur PGK 50 DC High-Voltage Test Device



T&D Exports with UK DTI's support closed a £135K business deal to supply ArcelorMittal Liberia with High Voltage Electrical Equipment, PPE & Cable Jointing Accessories to iron ore mining project.

ArcelorMittal mining operations in Liberia are spread over four regions, with iron ore mined at Tokadeh in Nimba County.

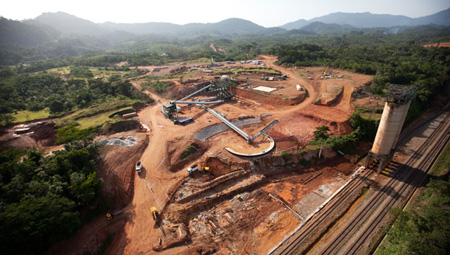

Picture: ArcelorMittal Liberia Mining Project

T&D have completed the delivery High Voltage Electrical Equipment including Baur High Voltage DC Test Sets (50kV & 80kV units) & Oil Testing Equipment.

Baur Ltd are specialist manufacturers of Cable Fault Locating Equipment, High Voltage Test Equipment, Cable Diagnostic Test Equipment and Insulating Oil Test Equipment.

Pictured: Baur High Voltage 80 kV & 50kV DC Test Sets

Baur High Voltage Test Sets PGK 50/80

Baur portable high voltage devices are designed for at site testing of paper-insulated mass-impregnated cables in MV networks. Baur PGK 50/80 are used for the generation of negative high voltage of up to 50kV or 80kV. The HV test devices are easily portable - packaged in a carry case with handles and carrying strap, well equipped for field applications.

Baur High Voltage Test Sets PGK 50 / 80 Features

• Stepless adjustable output voltage
• Voltage measurement is made directly at high voltage output
• Timer 1-30 min
• Sensitive current measurement for acquisition of smallest insulation currents (6 ranges)
• High short-circuit current
• Safety control according to VDE 0104
• Transient wave protection
• Socket for safety contact, emergency off switch, external signal lamps connection of Y/t plotter for recording the current output



Baur DC High-Voltage Test Device Specifications

Type	Baur PGK 50	Baur PGK 80
Max. Test Voltage	50 kV DC	80 kV DC
At An Output Current Of	2 mA	0.8 mA



Video: ArcelorMittal in Liberia - From Dream To Reality
