Anderton Ander-Fin : Preventing Rail Cable Theft From Cable Trough On Network Rail Infrastructure

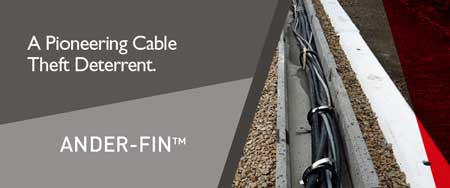

New from Anderton Concrete is the Ander-Fin rail cable theft deterrent - the simple route to secure trackside cabling.

The pioneering new cable protection system used in conjuction with Anderton cable troughing enables cables to be secured to cable troughs every metre in high risk areas.

Ander-Fin prevents rail cable theft by securing the cable to the concrete trough - specified for new cable trough routes. The Ander-Fin would be the first component fitted in the trough and the rail cable would fit around it. To protect existing cable trough routes the Anderton Ander-Loc system to prevent trough lid theft or removal can be installed.

T&D distribute the complete range of Anderton concrete cable trough.

Anderton Ander-Fin  Preventing Rail Cable Theft From Cable Trough On Network Rail Infrastructure

Anderton Ander-Fin Cable Theft Deterrent - Features & Benefits

  • Cable theft costs the rail industry tens of millions of pounds each year.
  • Cable theft causes delays and safety hazards.
  • Ander-Fin helps to prevent cable theft.
  • Ander-Fin enables cables to be secured and tied every metre.
  • Ander-Fin secures long lengths of LV-HV power cable.
  • Ander-Fin is used in conjunction with Anderton cable troughs.
  • Ander-Fin patent pending.

Anderton Ander-Fin Cable Theft Deterrent - Specification

  • The Fin is compatible with a range of Network Rail approved clips and sleeves.
  • The Fin is manufactured from glass filled nylon which has high strength and good fire resistance.
  • STRENGTH depending on orientation the Fin has a failure load of in excess of 2kN.
  • FIRE The Fin material has been tested to UL 94 and achieved V5A rating. The Limiting Oxygen Limit (LOI) is 32.5 and the material contains no Halogen

Anderton Ander-Fin : Preventing Rail Cable Theft From Cable Trough On Network Rail Infrastructure

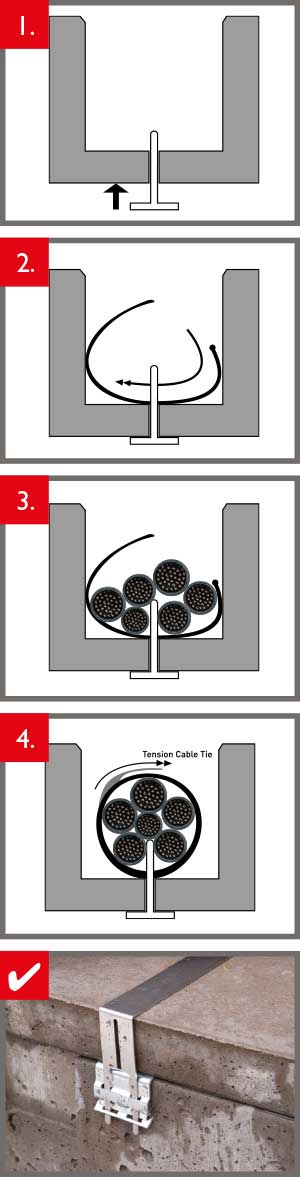

  1. Ander-fin™ is inserted into Anderton cable trough
  2. A Network Rail Approved cable tie with rubber sleeve is threaded through the Ander-Fin™
  3. The cables are bundled
  4. The cable tie is tensioned and secured
    Can be used in conjunction with Ander-Clip™

Anderton Ander-Fin Cable Theft Deterrent - Brochure
