Abtech SXCS Stainless Steel Control Stations (ATEX Hazardous Areas)

By Pamela Kinnell on 27th August, 2013

Follow @ThorneanDerrick

Hazardous Area Electrical Equipment - Abtech SXCS Stainless Steel Control Stations

The Abtech SXCS Stainless Steel Control Station range have been designed for use in potentially explosive atmospheres and are suitable for all gas groups including hydrogen. Abtech SXCS control stations are manufactured from high quality 316 stainless steel, offering the highest degree of environmental protection and is suitable for even the most arduous of conditions.

Stainless steel also prevents the build up of static electricity, making the SXCS controls stations ideal for use in dust hazard applications. Abtech SXCS stainless steel control stations have a protection degree of IP66 (IP65 when fitted with an ammeter).

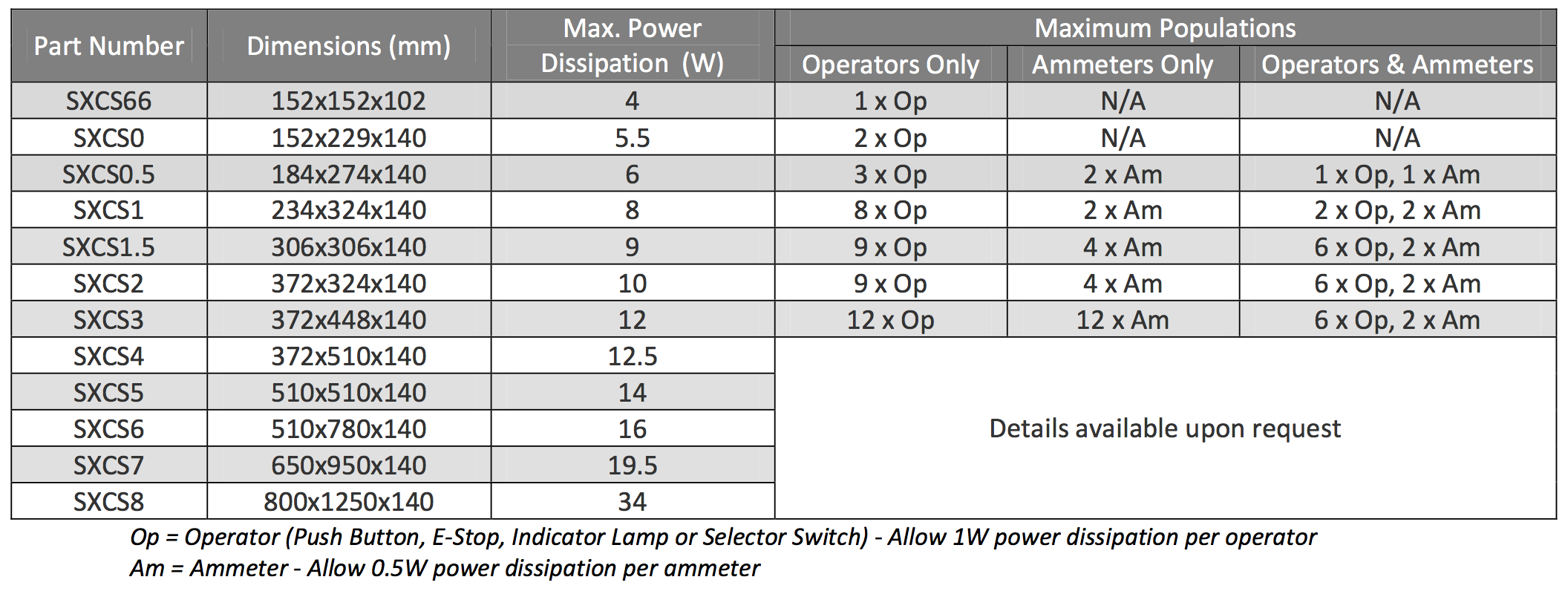

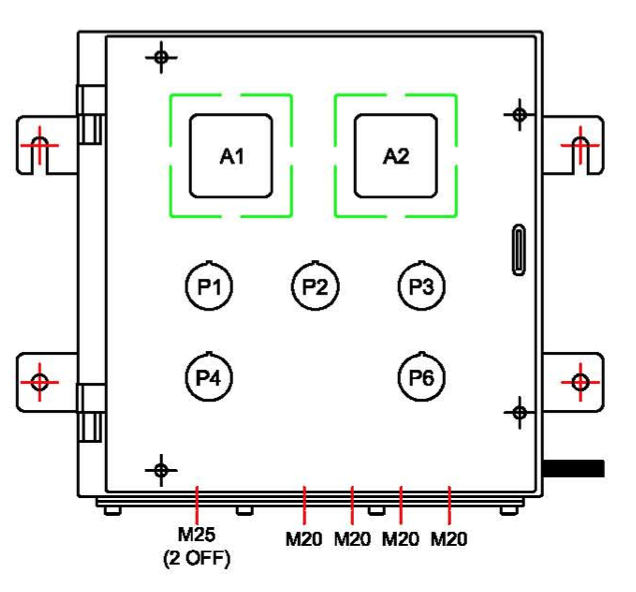

Abtech SXCS Stainless Steel Control Stations - Configuration Options

Abtech SXCS Stainless Steel Control Stations - Available Operator, Ammeter and Terminal Types

Push Button: Momentary, 1NC/1NO, 2NC or 2NO contacts. Coloured/marked inserts as required

Emergency Stop: Push‐Pull, 1NC/1NO, 2NC or 2NO contacts. Red/yellow mushroom head

Mushroom Head: Push‐Pull, 1NC/1NO, 2NC or 2NO contacts. Colour: black. Optional key release

Key Release Push Button: 1NC/1NO, 2NC or 2NO contacts. Colour: black

Indicator Lamp: Red/green/yellow/blue or white available

Illuminated Push Button: Red/green/yellow/blue or white available. Available with 1NC or 1NO contacts

Selector Switch: 2 or 3 position. 2‐pole contact configurations and label inserts to suit application. Small switch handle (39mm dia) as standard. Large handle (60mm dia) also available

Ammeter: Direct measuring with x2 overload scale (max scale: 0‐15A/30A). 1A or 5A current transformer with x2 or x5 overload scale (max scale: 0‐600A/3000A)

Terminals: Direct termination as standard, 2.5/4mm2 Ex screw terminals fitted where requested

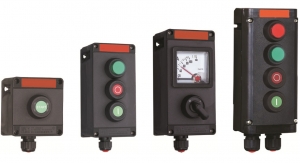

Abtech hazardous area control stations available in Plastic, GRP and Stainless Steel are designed for potentially explosive atmospheres and are suitable for most gas groups - Abtech BCS, PCS, SXCS hazardous area control stations are ATEX Certified for Zone 1 and Zone 2 areas.





Abtech SXCS Stainless Steel Control Stations Data
