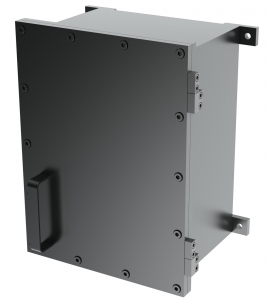

Hazardous Area Electrical Equipment - Abtech SSD Ex d Range Stainless Steel Enclosures

The Abtech SSD Ex d Range of stainless steel enclosures are manufactured from either stainless steel 316 or mild steel and provide significant levels of environmental protection. The Abtech SSD Ex d flameproof range uses the same flexible design approach seen on the Abtech SX range of Ex e enclosures.

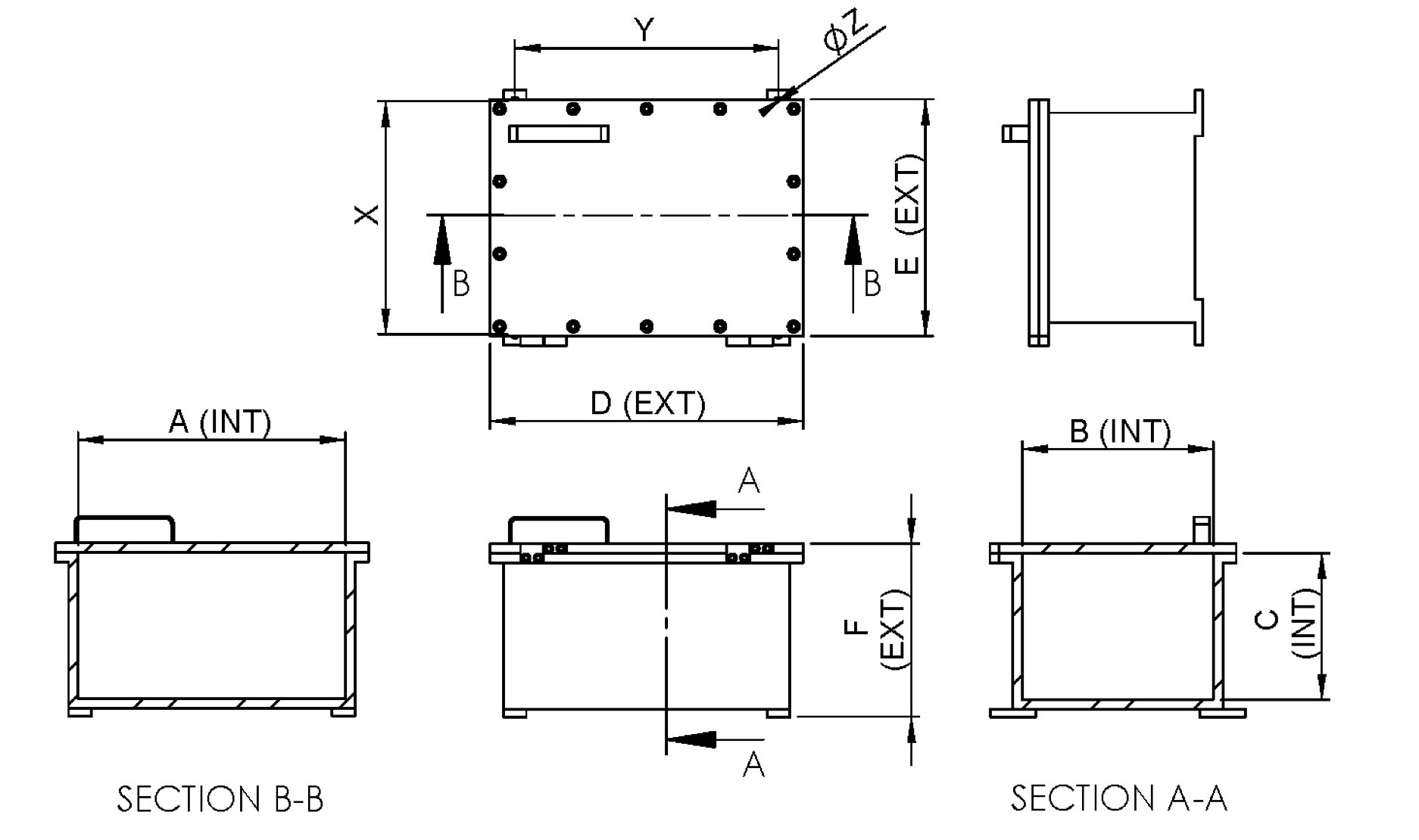

The sizes shown below are the most popular sizes, however, Abtech supply any size of enclosure as long as each dimension falls within the range of smallest to largest size shown. This gives the Abtech SSD Ex d range a unique flexibility, allowing customers the ability to employ cost‐effective, customsized enclosures. Abtech SSD Ex d stainless steel enclosures are ingress protected to IP66 to EN60529.

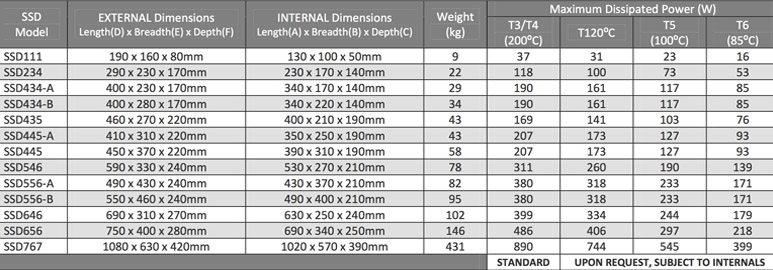

Abtech SSD Ex d Stainless Steel Enclosure Range Data



Abtech SSD Ex d Stainless Steel Enclosure Range Specifications

Apparatus Type: Flameproof Enclosure Range

Ingress Protection: IP66 to EN60529

Material: Stainless Steel or Mild Steel (optional)

Components: Switches, Breakers, RCDunits, Indicator lamps,motor controllers, etc.

Voltage Rating: 660V ac or 120V dc.(For high voltage (15kV) Ex d connection boxes see HVSD range.)

Cable Entry: Variable entry combinations on any of the 4 vertical sides.

Orientation: Universal

Mounting: Via rearmounting lugs

Supply: Standard: 110 to 254V 50/60Hz. Option: other voltages available on request

Area Certification: Group IIB Category 2G (Zone 1, 2)

Type of Protection: Ex d (flameproof)

Apparatus Coding: II 2 G Ex d IIB T3 Gb (T4, T5 or T6 upon request ‐ subject to inspection of internal components)

Certificate Number: INERIS 13ATEX0019X

Ambient Temperature: ‐20°C ≤ Tamb ≤ 40°C or   ‐20°C ≤ Tamb ≤ 55°C
