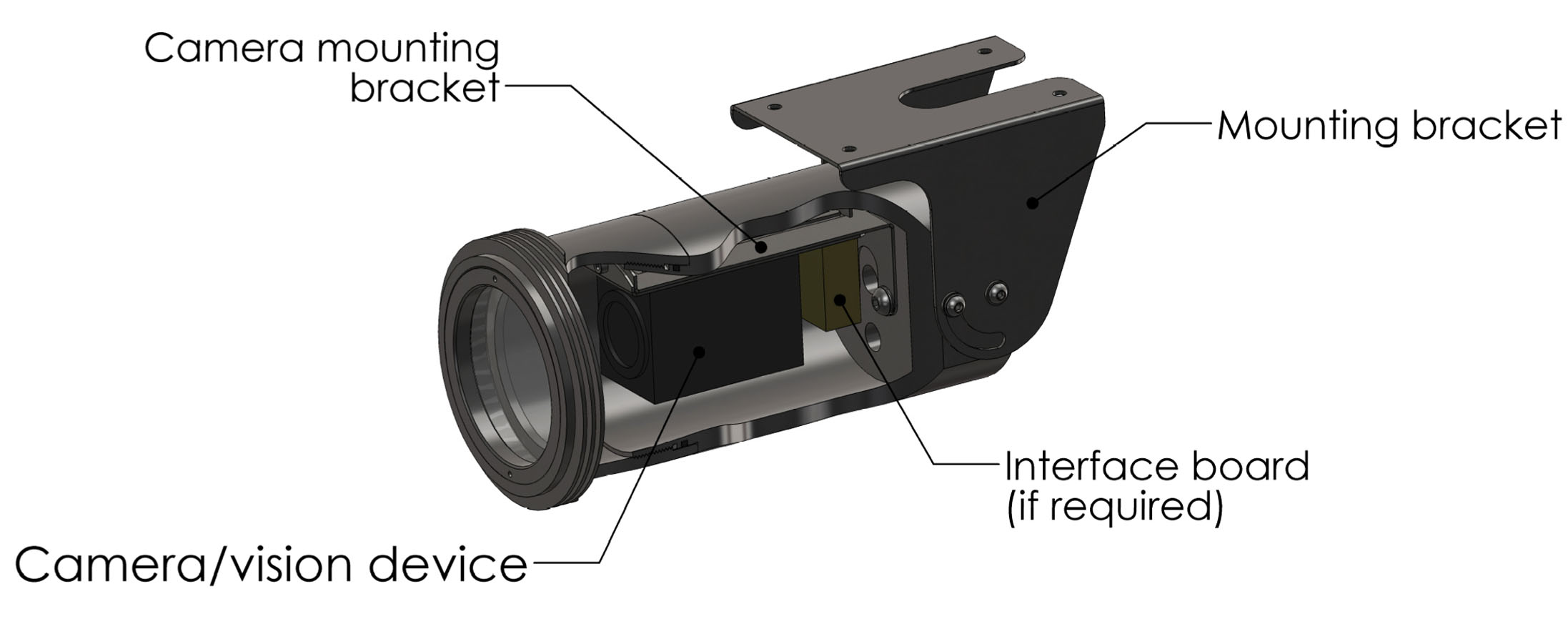

Abtech VisEx Camera Housing - ATEX Zone 1 & 2 Hazardous Area

Hazardous Area Electrical Equipment - Abtech VisEx Camera Housing

Abtech VisEx Camera Housing is suitable for housing various POE (Power Over Ethernet) camera and vision systems. The Abtech ATEX VisEx housing camera can be used in Zone 1 & 2 hazardous areas. The camera housing is manufactured in marine grade stainless steel and toughened glass. Abtech VisEx camera housing has protection to IP66/67 as standard and offers excellent environmental protection.Abtech



Abtech VisEx ATEX Camera Housing Ratings

Product Reference Maximum Power Rating (W)* Ambient Temperature Range** Temperature Rating Max External Temp for Dust Empty Enclosure Weight
VIS001 8 -60ºC  to+65ºC  T6 T80ºC  10.5kg
VIS001 47 -60ºC  to+65ºC  T4 T130ºC  10.5kg

* Refers to the dissipated power of the device being housed inside the VisEx camera housing. If in doubt seek advice from Abtech technical department.
** Other ambient temperature ranges are available.


Please note: The stated ambient temperature range does not imply that the equipment contained within, will operate at these temperatures.



Abtech VisEx ATEX Camera Housing Specifications

Apparatus Type: Camera Housing

Ingress Protection: IP66/67 to EN60529

Material: Stainless steel 316, toughened glass window, silicone gaskets

Access: Threaded front cover assembly

Equipment Mounting: Internal mounting plate can be modified to suit range of devices.

Cable Entry: Up to 2 x entry holes either M16 or M20 x 1.5p

Terminals: As per equipment to be contained

Orientation: Universal

Mounting: Mounting Bracket. Other mounting options available

Supply: Maximum device voltage 60V dc

Area Certification: Zone 1 & 2 Gas and Dust

Type of Protection: Ex d (flameproof)

Apparatus Coding: II 2 GD Ex d II (see table for temperature rating & ambient temperature range)

Certificate Number: SIRA11ATEX1157X, IECEx SIR 11.0071X

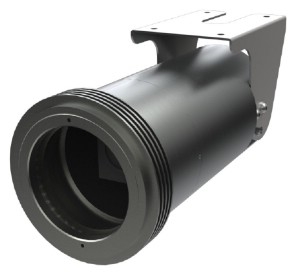

Abtech VisEx Camera Housing ATEX Zone 1 2 Hazardous Area



Abtech VisEx Camera Housing - ATEX Zone 1 & 2 Hazardous Area Data
