Abtech PCS Plastic Control Stations (ATEX Hazardous Areas)

By Chris Dodds on 20th August, 2013

Follow @ThorneanDerrick

Hazardous Area Electrical Equipment - Abtech PCS Control Stations

Certification: ATEX Ex e II T6

Abtech PCS Control Stations have been designed for use in potentially Explosive Atmospheres and are suitable for most gas groups including hydrogen. The Abtech PCS ATEX control stations are plastic, giving excellent mechanical strength and life expectancy.

These Abtech control stations are particularly suitable for use in Industrial and Hazardous Areas with harsh environmental conditions. Abtech PCS Control stations have a protection degree of IP66.



Abtech PCS Control Stations - Options

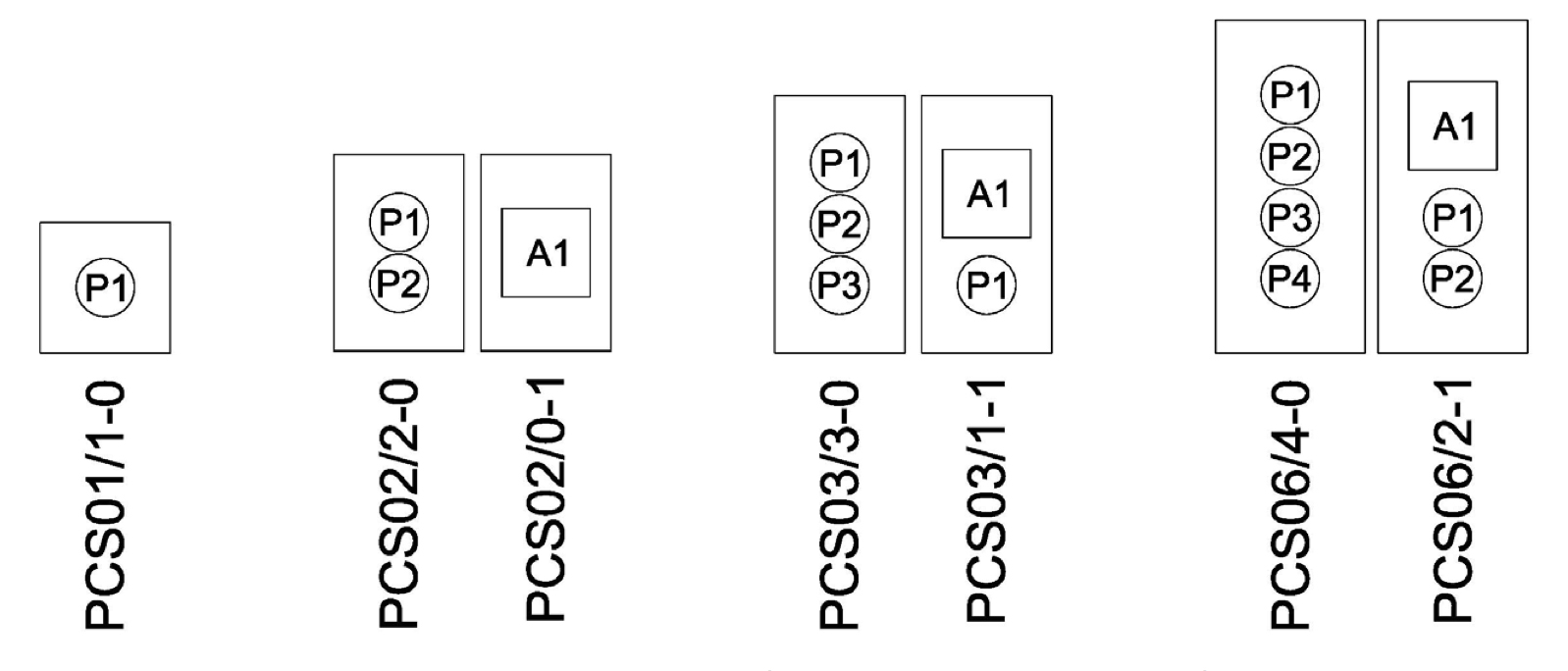

Part No.	Dimensions (mm)	Fixing Hole Centres (mm)	Max Populations Operators	Max Populations Ammeters	Max Populations Operators & Ammeters
PCS01	86x95x76	Horizontal:73 Vertical:58	1 x Op	N/A	N/A
PCS02	86x135x76	Horizontal:73 Vertical:98	2 x Op	1 x Am	N/A
PCS03	86x175x76	Horizontal:73 Vertical:138	3 x Op	N/A	1 x Op, 1 x Am
PCS06	100x215x76	Horizontal:88 Vertical:150	4 x Op	N/A	2 x Op, 1 x Am

Op = Operator (Push Button, E‐Stop, Indicator Lamp, Selector Switch or Potentiometer) Am = Ammeter

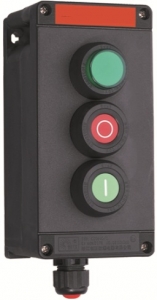

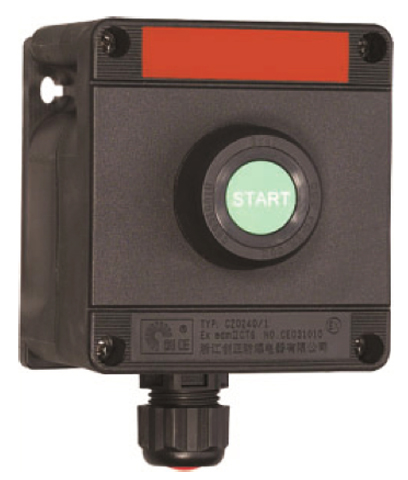

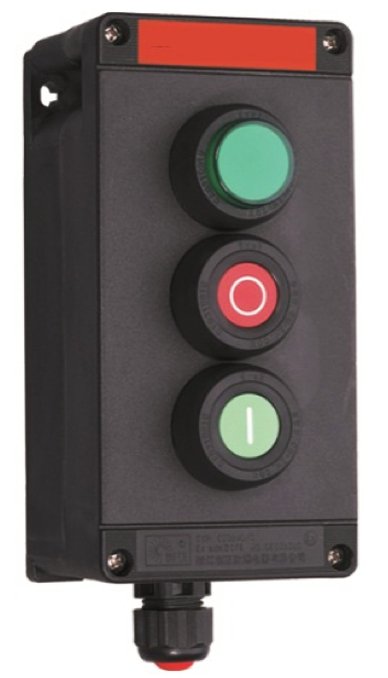

   Abtech PCS01 Control Station          Abtech PCS02 Control Station

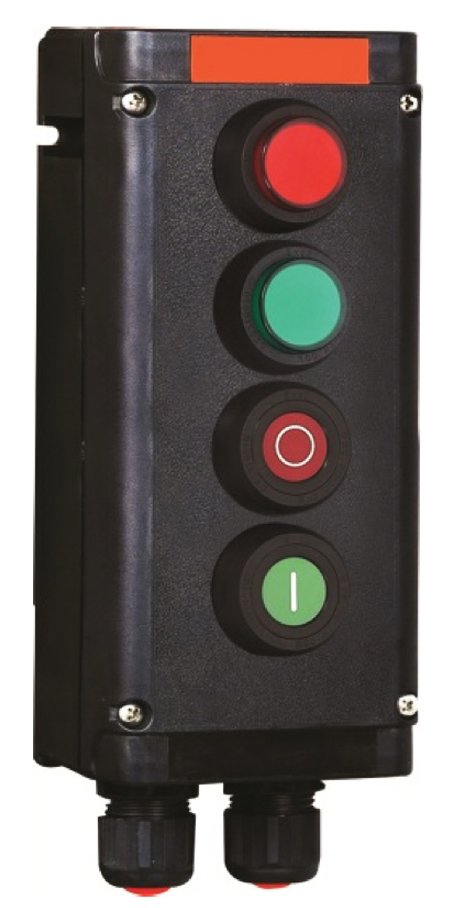

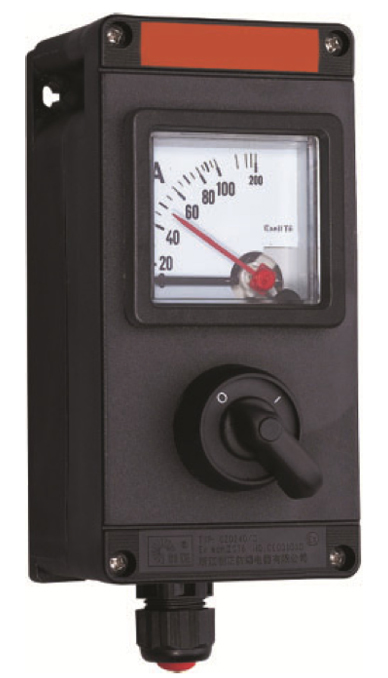

   Abtech PCS03 Control Station       Abtech PCS06 Control Station



Abtech PCS Control Stations - Operator, Ammeter & Terminal Types

Push Button: Momentary, 1NC/1NO, 2NC or 2NO contacts. Coloured/marked inserts as required

Emergency Stop: Push‐Pull, 1NC/1NO, 2NC or 2NO contacts. Red/yellow mushroom head

Mushroom Head: Push‐Pull, 1NC/1NO, 2NC or 2NO contacts. Colour: black. Optional key release

Key Release Push Button: 1NC/1NO, 2NC or 2NO contacts. Colour: black

Indicator Lamp: Red/green/yellow/blue or white available

Illuminated Push Button: Red/green/yellow/blue or white available. Available with 1NC or 1NO contacts

Selector Switch: 2 or 3 position. 2‐pole contact configurations and label inserts to suit application Small switch handle (39mm dia) as standard. Large handle (60mm dia) also available

Potentiometer: 1000, 2200, 4700 or 10000Ω resistance values available. Rated voltage: 250V

Ammeter: Direct measuring with x2 overload scale (max scale: 0‐15A/30A), 1A or 5A current transformer with x2 or x5 overload scale (max scale: 0‐600A/3000A)

Terminals: Direct connection to rail mounted contact blocks as standard (max: 2.5mm2 cable)

Abtech hazardous area control stations available in Plastic, GRP and Stainless Steel are designed for potentially explosive atmospheres and are suitable for most gas groups - Abtech BCS, PCS, SXCS hazardous area control stations are ATEX Certified for Zone 1 and Zone 2 areas.





Abtech ATEX PCS Control Stations - Hazardous Area Control Station Data
