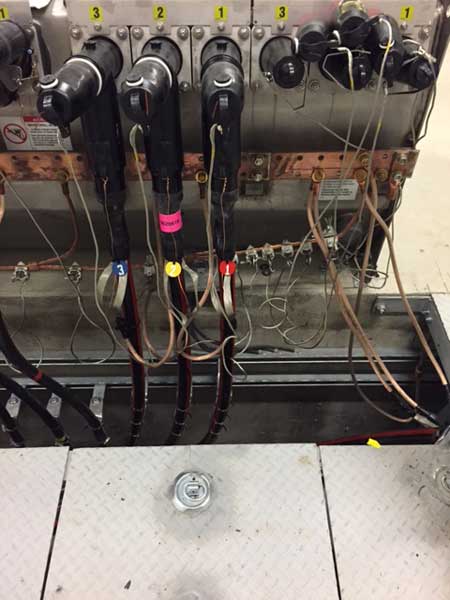

25kV Elastimold Tee Connector Terminations Connected To S&C Vista Switchgear

By Chris Dodds on 12th August, 2015

Follow @ThorneanDerrick

Image : Andy O'Malley (IBEW 258 EHV Cable Jointer/Splicer).

Location : Vancouver, Canada.

Andy O'Malley, all-round Jointer and "Good Guy". Proud member of IBEW 258.

We have the greatest pleasure in showcasing this first example of Andy's jointing expertise on our Photoblog - terminating medium voltage cable into S&C switchgear using Elastimold Connectors.

We have plenty more to come from Andy including an image series featuring the pulling, laying and terminating of 138kV Southwire EHV cable using NKT cable terminations.

Jointing is in the O'Malley genes. Andy's father Patrick inspired him to follow in his footsteps - we hope to soon run some "old-skool" photo's from the family archive of Patrick's splicing work.

Whether down the trench or up the pole, Andy is a key member of the Allteck team.

Allteck are international leaders in the design, construction, maintenance and upgrade of overhead and underground high voltage electric power utilities.

S&C Electric Company - Vista® SD Underground Distribution Switchgear

S&C Electric Company now offers another choice in metal-enclosed gear.

Economical new Vista SD Underground Distribution Switchgear is the first practical solid-dielectric medium voltage switchgear with a visible open gap and field-replaceable bushings.

The elbow-connected MV switches and fault interrupters are encapsulated in an environmentally friendly solid-dielectric insulating material.

S&C Electric Company Blog - GridTalk



Downloads :

• S&C Vista SD Underground Distribution Switchgear Outdoor Distribution (17.5 kV and 29 kV) With Visi-Gap Load-Interrupter Switches and Visi-Gap Fault Interrupters - Vault



• S&C Vista SD Underground Distribution Switchgear Outdoor Distribution (17.5 kV and 29 kV) With Visi-Gap Load-Interrupter Switches and Visi-Gap Fault Interrupters - Pad-Mounted



• Further reading
