110kV Cable With Stainless Steel Sheath Plumbed/Wiped To Copper Sheath Cable

By Chris Dodds on 12th August, 2015

Follow @ThorneanDerrick

Image : Andy O'Malley (IBEW 258 EHV Cable Jointer/Splicer).

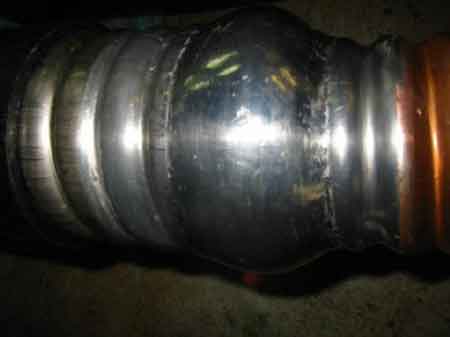

"This is a stainless steel super sheathed 110kV cable in Brisbane Australia - the high voltage cable had an HDPE graphite coated outer sheath then a stainless steel sheath. A PVC sheath was below the stainless steel then below that a copper sheath. Finally, inside the sheath layers was a 1600sqmm copper conductored XLPE cable. Great project with the Energex boys," comments Andy.
