11kV Triplex Cable Joints & Cable Terminations (BS7870)







SPS HV Heat Shrink Cable Joints & Terminations

High Voltage Cable Joint Kits, Single & 3 Core Polymeric & Paper Cables

6.6kV, 11kV, 33kV Heat Shrink Joint Kits



SPS Heat Shrink Triplex 11kV cable joints and cable terminations suit 95sqmm, 185sqmm and 300sqmm 11kV single core, XLPE insulated, unarmoured, copper wire screened, stranded or solid aluminium conductor, high voltage Triplex power cable, BS7870-4.10.

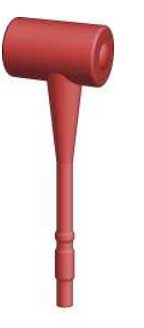

• 11kV Triplex heat shrink cable terminations are available with high voltage (HV) mechanical shearbolt connectors, bolt-on Triplex cable glands and universal insulating bushing boots for straight or right angled connection to high voltage switchgear or electrical equipment.



• 11kV Triplex heat shrink cable joints include mechanical shearbolt connectors for quick and easy jointing of 95sqmm, 185sqmm and 300sqmm conductors. Resin encapsulated heat shrink Triplex cable joints are available.



Heat Shrink Triplex Cable Joints
Part Number	Cable Range
SPJ 12TX-95-185-1	95-185mm²
SPJ 12TX-185-300-1	185-300mm²



Heat Shrink / Resin Combination Triplex Cable Joints
Part Number	Cable Range
SPUJ 12TX-95-185-1	95-185mm²
SPUJ 12TX-185-300-1	185-300mm²



Pictured : 11kV Triplex Cable Specification. Triplex 11kV cable features - Solid or stranded aluminium conductor, XLPE insulated, copper wire screen (35mm). MDPE outer cable sheath. Red. 6350/11000 volts (11kV) grade to BS7870. Triplex cable consists of 3 single core high voltage cables in triplex formation.



Triplex Cable Joints & Terminations Overview

• SPS 11kV Triplex Straight Cable Joints & Terminations (Indoor & Outdoor)
• SPS 11kV Triplex Polymeric Trifurcating Cable Joints for 11kV high voltage cable jointing of 11kV XLPE/CTS SWA 3 core (BS6622) to 11kV Triplex (BS7870)
• SPS 11kV Triplex Transition Trifurcating Cable Joints for 11kV high voltage cable jointing of 11kV PILC/SWA 3 core to 11kV Triplex (BS7870)

11kV Triplex heat shrink cable terminations and cable joints are tested and qualified to International Standards including Cenelec Standard (HD 628 S1 and 629.1 S2:2006), encompassing VDE0278 and IEC60502.

Also : 11kV Triplex Cable Stripping Tools

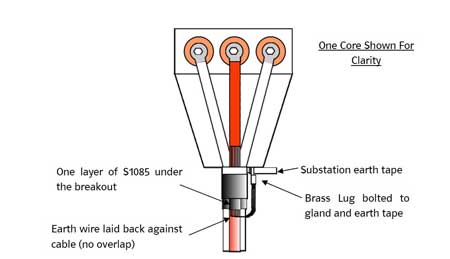

Triplex Cable Termination 11kV - Bonding & Earthing
High voltage 11kV Triplex copper earth screen wires must be bonded together and connected to the substation HV earth - copper wires of each single core should be gathered together into a single brass shear bolt lug or copper crimp lug. Most cable gland plates incorporate a parking bar suitable for bolting the three cable lugs onto - a further connection is required from this parking bar to the substation HV earth.
