Galvanised Feeder Pillar - Lucy Fortress - 09HDG3

Lucy Lighting Fortress Feeder Pillars - Single Door Pillars

Lucy Zodion 09HDG3

Single Door Feeder Pillars - Galvanised & Stainless Steel

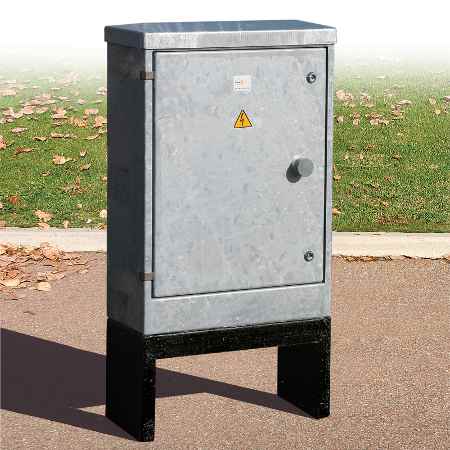

Pictured: Galvanised Feeder Pillar - Lucy Fortress - 09HDG3

Galvanised Feeder Pillar - Lucy Fortress - 09HDG3 - Specification :

• Long life hinges made from solid stainless steel
• Two tri-head locks fitted as standard
• Backboard made from 18mm thick treated plywood
• Detachable root section finished in bitumen enriched paint
• Danger warning label fitted in a recess in the door
• Earth lead connection supplied from feeder pillar body to door
• HDP feeder pillars powder coated grey as standard
• High quality UV resistant paint to a minimum 60 microns thickness
• Feeder pillar door seal up to IP65
• Detachable feeder pillar roof

Galvanised Feeder Pillar - Lucy Fortress - 09HDG3 - Technical Specification

Pillar Size	09
Height (H) Above Ground	1088mm
Root Section (R)	350mm
Width (W)	661mm
Depth (D)	281mm
Door Opening Height (DH)	860mm
Door Opening Width (DW)	550mm
Working Depth (WD)	225mm
Backboard Size (WxH)	640mm x 930mm
Weight (kg) (3mm thickness)	84kg



Pictured: Galvanised Feeder Pillar - Lucy Fortress - 09HDG3 - Dimensions Illustration

T&D together with Lucy Electric also offer double door feeder pillars, mini feeder pillars and micro feeder pillars.
