Galvanised Feeder Pillar - Lucy Fortress - 10HDG3

Lucy Zodion Feeder PillarsLucy Lighting Fortress Feeder Pillars - Single Door Pillars

Lucy Zodion 10HDG3

Single Door Feeder Pillars - Galvanised & Stainless Steel

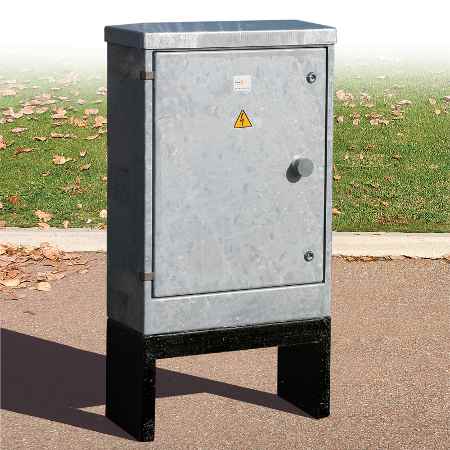

Pictured: Galvanised Feeder Pillar - Lucy Fortress - 10HDG3

Galvanised Feeder Pillar - Lucy Fortress - 10HDG3

Galvanised Feeder Pillar - Lucy Fortress - 10HDG3 - Specification :

  • Long life hinges made from solid stainless steel
  • Two tri-head locks fitted as standard
  • Backboard made from 18mm thick treated plywood
  • Detachable root section finished in bitumen enriched paint
  • Danger warning label fitted in a recess in the door
  • Earth lead connection supplied from feeder pillar body to door
  • HDP feeder pillars powder coated grey as standard
  • High quality UV resistant paint to a minimum 60 microns thickness
  • Feeder pillar door seal up to IP65
  • Detachable feeder pillar roof
Galvanised Feeder Pillar - Lucy Fortress - 10HDG3 - Technical Specification
Pillar Size 10
Height (H) Above Ground 1194mm
Root Section (R) 350mm
Width (W) 800mm
Depth (D) 350mm
Door Opening Height (DH) 907mm
Door Opening Width (DW) 700mm
Working Depth (WD) 325mm
Backboard Size (WxH) 790mm x 975mm
Weight (kg) (3mm thickness) 108kg



Pictured: Galvanised Feeder Pillar - Lucy Fortress - 10HDG3 - Dimensions Illustration

Galvanised Feeder Pillar - Lucy Fortress - 10HDG3 - Dimensions Illustration

Feeder Pillars

T&D together with Lucy Electric also offer double door feeder pillars, mini feeder pillars and micro feeder pillars.
