Galvanised Feeder Pillar - Lucy Fortress - 06HDG3

Lucy Zodion Feeder PillarsLucy Lighting Fortress Feeder Pillars - Single Door Pillars

Lucy Zodion 06HDG3

Single Door Feeder Pillars - Galvanised & Stainless Steel

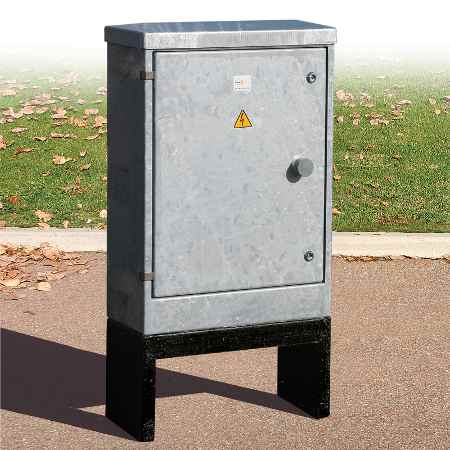

Pictured: Galvanised Feeder Pillar - Lucy Fortress - 06HDG3

Galvanised Feeder Pillar - Lucy Fortress - 06HDG3

Galvanised Feeder Pillar - Lucy Fortress - 06HDG3 - Specification :

  • Long life hinges made from solid stainless steel
  • Two tri-head locks fitted as standard
  • Backboard made from 18mm thick treated plywood
  • Detachable root section finished in bitumen enriched paint
  • Danger warning label fitted in a recess in the door
  • Earth lead connection supplied from feeder pillar body to door
  • HDP feeder pillars powder coated grey as standard
  • High quality UV resistant paint to a minimum 60 microns thickness
  • Feeder pillar door seal up to IP65
  • Detachable feeder pillar roof
Galvanised Feeder Pillar - Lucy Fortress - 06HDG3 - Technical Specification
Pillar Size 06
Height (H) Above Ground 636mm
Root Section (R) 300mm
Width (W) 400mm
Depth (D) 180mm
Door Opening Height (DH) 410mm
Door Opening Width (DW) 300mm
Working Depth (WD) 155mm
Backboard Size (WxH) 390mm x 475mm
Weight (kg) (3mm thickness) 42.5kg

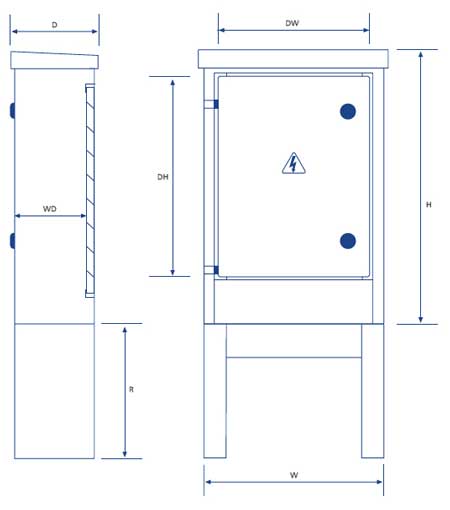

Pictured: Galvanised Feeder Pillar - Lucy Fortress - 06HDG3 - Dimensions Illustration

Galvanised Feeder Pillar - Lucy Fortress - 06HDG3 - Dimensions Illustration

Feeder Pillars

T&D together with Lucy Electric also offer double door feeder pillars, mini feeder pillars and micro feeder pillars.
