Lucy Fortress Feeder Pillars, Galvanised Steel - Size 18

Lucy Zodion Feeder PillarsLucy Lighting Fortress Feeder Pillars - Double Door Pillars

Lucy Zodion

Double Door Feeder Pillars - Galvanised & Stainless Steel

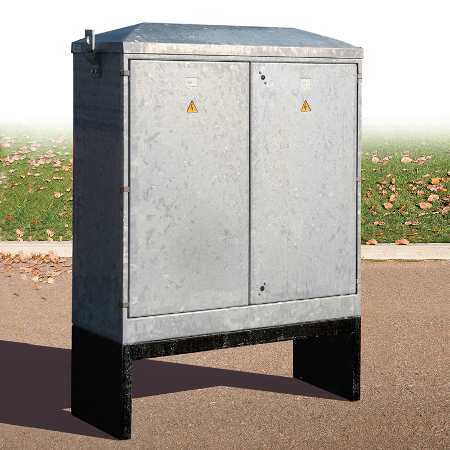

Pictured: Lucy Fortress Feeder Pillars, Galvanised Steel - Size 18

Lucy Fortress Feeder Pillars, Galvanised Steel - Size 18

Lucy Fortress Feeder Pillars, Galvanised Steel - Size 18 - Specification :

  • Two, three hinged door feeder pillars
  • Long life hinges made from solid stainless steel
  • Two Lucy wedge locks fitted as standard
  • Backboard made from 18mm thick treated plywood
  • Detachable root section finished in bitumen enriched paint
  • Danger warning label fitted in a recess in the feeder pillar door
  • Earth lead connection supplied from feeder pillar body to door
  • HDP feeder pillars powder coated grey as standard
  • High quality UV resistant paint to a minimum 60 microns thickness
  • Feeder pillar door seal up to IP65
  • Detachable pillar roof
  • No fixed bar between doors allows total access for installing equipment

HDG - Hot Dip Galvanised Steel Feeder Pillars (3mm or 5mm thick)

HDP - Hot Dip Galvanised Steel Feeder Pillars & Painted

Lucy Fortress Feeder Pillars, Galvanised Steel - Size 18 - Technical Specification
Pillar Size Code 18
Height Above Ground (H) (mm) 1300
Root Section (R) (mm) 380
Width (W) (mm) 1750
Depth (D) (mm) 450
Door Opening Height (DH) (mm) 980
Door Opening Width (DW) (mm) 1648
Working Depth (WD) (mm) 375
Backboard Size (WxH) (mm) 1725 x 1085
Weight (kg) (Thickness 3mm) 234



Pictured: Lucy Fortress Feeder Pillars, Galvanised Steel - Size 18 - Dimensions Illustration

Lucy Fortress Feeder Pillars, Galvanised Steel - Size 18 - Dimensions Illustration
