Lucy Fortress Feeder Pillars, Galvanised Steel - Size 30

Lucy Lighting Fortress Feeder Pillars - Double Door Pillars

Lucy Zodion

Double Door Feeder Pillars - Galvanised & Stainless Steel

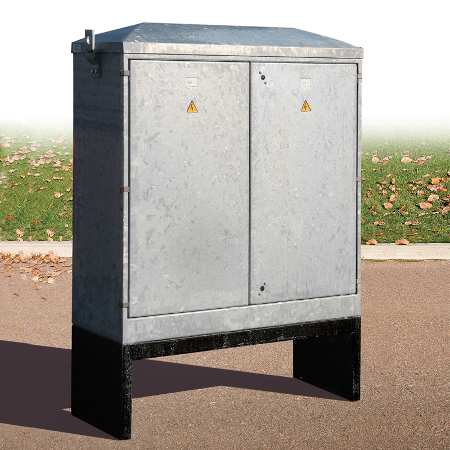

Pictured: Lucy Fortress Feeder Pillars, Galvanised Steel - Size 30

Lucy Fortress Feeder Pillars, Galvanised Steel - Size 30 - Specification :

• Two, three hinged door feeder pillars
• Long life hinges made from solid stainless steel
• Two Lucy wedge locks fitted as standard
• Backboard made from 18mm thick treated plywood
• Detachable root section finished in bitumen enriched paint
• Danger warning label fitted in a recess in the feeder pillar door
• Earth lead connection supplied from feeder pillar body to door
• HDP feeder pillars powder coated grey as standard
• High quality UV resistant paint to a minimum 60 microns thickness
• Feeder pillar door seal up to IP65
• Detachable pillar roof
• No fixed bar between doors allows total access for installing equipment​

HDG - Hot Dip Galvanised Steel Feeder Pillars (3mm or 5mm thick)

HDP - Hot Dip Galvanised Steel Feeder Pillars & Painted

Lucy Fortress Feeder Pillars, Galvanised Steel - Size 30 - Technical Specification

Pillar Size Code	30
Height Above Ground (H) (mm)	1600
Root Section (R) (mm)	380
Width (W) (mm)	2250
Depth (D) (mm)	450
Door Opening Height (DH) (mm)	1280
Door Opening Width (DW) (mm)	2148
Working Depth (WD) (mm)	375
Backboard Size (WxH) (mm)	2225 x 1385
Weight (kg) (Thickness 3mm)	343



Pictured: Lucy Fortress Feeder Pillars, Galvanised Steel - Size 30 - Dimensions Illustration

Lucy Lighting Fortress Feeder Pillars including Single Door Feeder Pillars, Double Door Feeder Pillars, Mini Feeder Pillars & Slimeline Feeder Pillars.
