Lucy Fortress Feeder Pillars, Galvanised Steel - Size 24

Lucy Lighting Fortress Feeder Pillars - Double Door Pillars

Lucy Zodion

Double Door Feeder Pillars - Galvanised & Stainless Steel

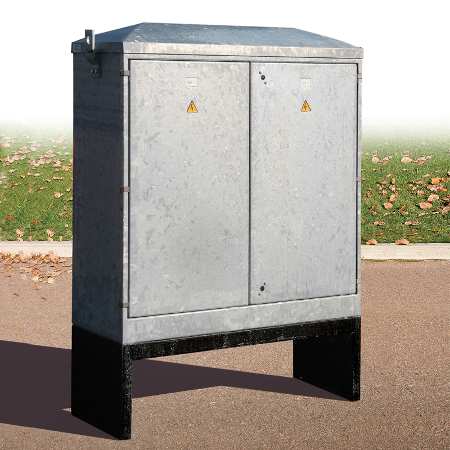

Pictured: Lucy Fortress Feeder Pillars, Galvanised Steel - Size 24

Lucy Fortress Feeder Pillars, Galvanised Steel - Size 24 - Specification :

• Two, three hinged door feeder pillars
• Long life hinges made from solid stainless steel
• Two Lucy wedge locks fitted as standard
• Backboard made from 18mm thick treated plywood
• Detachable root section finished in bitumen enriched paint
• Danger warning label fitted in a recess in the feeder pillar door
• Earth lead connection supplied from feeder pillar body to door
• HDP feeder pillars powder coated grey as standard
• High quality UV resistant paint to a minimum 60 microns thickness
• Feeder pillar door seal up to IP65
• Detachable pillar roof
• No fixed bar between doors allows total access for installing equipment​

HDG - Hot Dip Galvanised Steel Feeder Pillars (3mm or 5mm thick)

HDP - Hot Dip Galvanised Steel Feeder Pillars & Painted

Lucy Fortress Feeder Pillars, Galvanised Steel - Size 24 - Technical Specification

Pillar Size Code	24
Height Above Ground (H) (mm)	1600
Root Section (R) (mm)	380
Width (W) (mm)	1500
Depth (D) (mm)	450
Door Opening Height (DH) (mm)	1280
Door Opening Width (DW) (mm)	1398
Working Depth (WD) (mm)	375
Backboard Size (WxH) (mm)	1475 x 1385
Weight (kg) (Thickness 3mm)	231



Pictured: Lucy Fortress Feeder Pillars, Galvanised Steel - Size 24 - Dimensions Illustration

Lucy Lighting Fortress Feeder Pillars including Single Door Feeder Pillars, Double Door Feeder Pillars, Mini Feeder Pillars & Slimeline Feeder Pillars.

Lucy Fortress Feeder Pillars, Galvanised Steel - Size 24
