Wolf M-80 Midi LED Safety Torch (ATEX) For Hazardous Areas Zone 1 & Zone 2

By Chris Dodds on 19th July, 2012

Follow @ThorneanDerrick

Wolf Safety Lighting

Hazardous Area Zone 1 & 2 ATEX Torches

Wolf M-80 LED Midi Torch

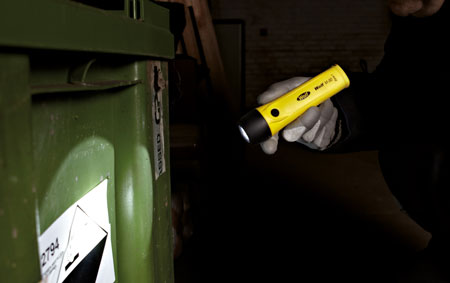

Wolf Safety, hazardous area portable lighting specialists are proud to announce the launch of its latest safety torch, the Wolf M-80 Midi LED Safety Torch. The Wolf M-80 LED Torch is compact and lightweight, powered by 4AA primary cells and fitted with a high power LED light source.

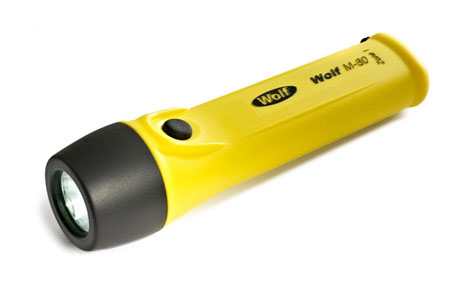

Pictured: Wolf Safety M-80 Midi Torch - ATEX Zones 1 & 2

The Wolf Midi 4AA LED Safety torch is CE marked to the 94/9/EC (ATEX Equipment) Directive and is IECEx Scheme Certified for safe use in ATEX & IECEx Zones 1 and Zone 2 potentially explosive gas, vapour and mist atmospheres for group IIA and IIB (industrial) gas groups, up to T4 temperature class, and group I M2 mining applications. With a light output of up to 120 lumens using bespoke optics to give a powerful spot beam and incorporating a wide angle fringe beam, ideal for inspection and maintenance tasks, the Wolf M-80 LED torch gives approximately 7 hours light duration from one set of 4AA alkaline primary cells.

Wolf M-80 Midi Torch is designed for single handed switching and is water and dust tight to IP67. The torch body is manufactured from a high impact resistant thermoplastic which is robust and highly durable and electrostatic non hazardous with an impact resistant polycarbonate lens. Wolf M-80 LED torch 4AA torch is small and lightweight, allowing it to be easily transported and stored in a pocket and is supplied with a wrist strap for hazardous area lighting in Zone 1 and Zone 2.

Wolf M-80 Hazrdous Area Midi Torch Features & Benefits

• ATEX Approved and IECEx Certified for use in Zone 1 hazardous areas
• 189 lumen high output LED light source
• T3/T4 temperature class
• IIB Gas Group
• Midi compact size
• Compact & robust ergonomic design
• Single handed switch with switch protection shroud
• IP67 water and dust tight
• Group I M2 Mining approval
• Supplied with a wrist strap and T4 approved cells

Wolf Safety M-80 Midi Torch Product Information

Product Type	Description
Wolf M-80	4AA Primary Cells Gas Zone: 1 and 2



Wolf Safety Lamp Company is Europes largest manufacturer of Portable Intrinsically Safe & Explosion Proof Lighting suitable for hazardous areas. Wolf Safety Lamps have proven quality and reliability demonstrated by their service record in the oil, gas, petrochemicals, marine, offshore, aviation, pharmaceuticals and water industries.

For more Wolf Safety Lighting - Wolf Safety Lamp - Portable Lighting (Torches, Handlamps, Headlamps)



Video: Wolf Midi M-80 Ultra Bright Compact LED ATEX Safety Torch
