Wolf Safety WF-300 LinkEx LED Floodlite - ATEX Temporary Lighting For Hazardous Areas

By Chris Dodds on 15th August, 2012

Follow @ThorneanDerrick

Hazardous Area Lighting

Wolf Safety ATEX Lighting

Wolf WF-300 LED ATEX Floodlite

Wolf WF-300 LinkEx LED Floodlite is a portable LED flooodlight for temporary applications in potentially explosive atmospheres. Wolf WF-300 is CE marked to the ATEX Directive and IECEx Certified for safe use in Zone 1 potentially explosive gas and Zone 21 explosive dust atmospheres, where a T4 temperature class permits.

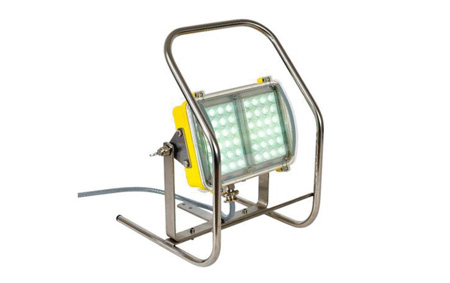

Pictured: Wolf WF-300 LinkEx LED Floodlite

Wolf WF-300 LinkEx LED Floodlite Features & Benefits

• ATEX Directive compliant and IECEx Scheme certified
• For use in Zones 1 gas and 21 dust atmospheres
• Ultra bright high power LED light output

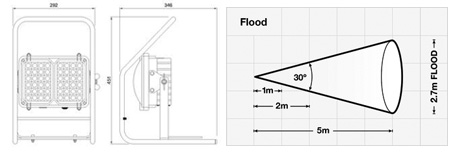

• Medium angle 30 degree flood beam
• Wide voltage range 18-54V and 100-254V
• Small, lightweight floodlamp construction
• IP66/67 dust and watertight
• Supplied with stainless steel stand and integral bridle
• Very low maintenance
• Magnet mounting and tripod options available
• Lens protecting films available for blasting and painting applications

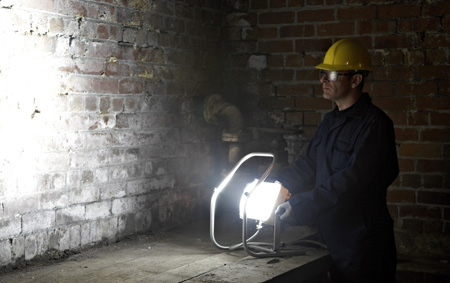

Pictured: Wolf Safety WF-300 LinkEx LED Floodlite Application

Wolf WF-300 Floodlight is cable powered and fitted with an ATEX plug. For mains voltages it can also be fitted with an ATEX socket to setup a string of lights from a single power source.  The ATEX floodlight is designed to withstand the harshest environments, using marine grade aliminium for the enclosure and impact-resistant polycrbonate for the lens.

Wolf Safety WF-300 LED temporary lighting is supplied with a stainless steel (316 grade) bridle for pivot angle adjustment and bolted to a stainless steel stand for protection. The lamp can also easily be detached and bolted to magnet fixings or a tripod stand, making it a very versatile solution for hazardous areas activities.



Wolf WF-300 LED ATEX Floodlight Specifications

Product Reference		Wolf WF-300
Product Description		Wolf LinkEx LED Floodlite
Voltage		18-54V AC/DC	100-254V AC
Code		II 2 GD Ex emb IIC T4 Gb  Ex t IIIC T87°C Db IP66/67 (Ta = -20°C to +55°C)	II 2 GD Ex emb IIC T4 Gb  Ex t IIIC T103°C Db IP66/67 (Ta = -20°C to +50°C)
Type of Protection		"e" increased safety, 'mb' encapsulation,  't' enclosure protection
Area of Classification (Gas)		Zones 1 and 2,  Gas Groups IIA, IIB and IIC
Area of Classification (Dust)		Zones 21 and 22,  Dust Groups IIIA, IIIB and IIIC
Max Surface Temp (Dust)		T87°C	T103°C
Ambient Temperature		-20°C to +55°C	-20°C to +50°C
Enclosure		Marine grade aluminium alloy,  epoxy powder coated
Lens		Polycarbonate
Beam Type		Medium Flood
Light Source	Type	48 x White High Power LEDs
	Life	100,000+ hrs
	Power	59w	58w
	Output	5200 lumens
Weight		9.0kg (excluding cable)
Ingress Protection		IP66/67



Video: Wolf Safety Temporary ATEX & IECEx Hazardous Area Lighting
