Wolf Safety ATEX Micro & Mini Torches M-10 M-20 M-40 M-60 For Hazardous Areas

By Chris Dodds on 13th November, 2013

Follow @ThorneanDerrick

Hazardous Area Lighting

Wolf Safety ATEX Micro & Mini Torches

Wolf Safety Micro and Mini Torches are compact for easy pocket storage and give impressive light beam with up to 10 hours of light duration (depending on model). The micro and mini torches are CE marked to the ATEX Directive and IECEx certified for safe use in potentially explosive gas, vapour, mist or dust atmospheres, where a T4 or T5 temperature class permits. All models are approved to Group I for use in mining applications.

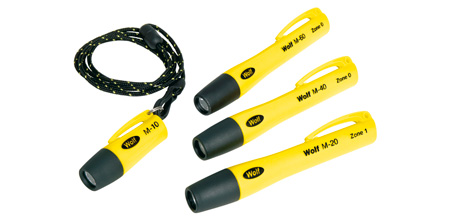

Pictured: Wolf Safety ATEX Micro & Mini Torches

Wolf Safety ATEX Micro & Mini Torch Range

• Wolf M-10 LED Micro Torch
• Wolf M-20 Xenon Mini Torch
• Wolf M-40 LED Mini Torch
• Wolf M-60 1W LED Mini Torch



Wolf ATEX Micro and Mini Torches For Hazardous Areas

Product	Description
Wolf M-10	Micro	Medium Spot	LED	Gas Zone: 0, 1 & 2 Dust Zone: 20, 21 & 22
Wolf M-20	Mini	Narrow Spot	Xenon Filled Filament Bulb	Gas Zone: 1 & 2 Dust Zone: 21 & 22
Wolf M-40	Mini	Medium Spot	LED	Gas Zone: 0, 1 & 2 Dust Zone: 20, 21 & 22
Wolf M-60	Mini	Medium Spot	High Power LED	Gas Zone: 0, 1 & 2 Dust Zone: 20, 21 & 22



Wolf Safety Micro and Mini Torches have are constructed from high quality thermoplastic resin, with excellent impact and chemical resistance. All mini and micro torches have a lanyard hole, an integral pocket clip and a push button for easy one-handed use.

Wolf ATEX Micro and Mini Torches For Hazardous Area Torch Features

• ATEX and IECEx Certified
• T4/T5 temperature class
• Ultra small size
• Lightweight, ergonomic design
• Proven impact resistance
• Single handed switching
• Switch protection shroud
• Integral pen style pocket clip
• IP67 water and dust tight
• Gas and Dust Approval
• Group I Mining Approval
• Ambient Temp -20°C to + 50°C / -20°C to + 40°C
• Max Surface Temp 80°C
• Impact Resistant Thermoplastic, Electrostatic Non-hazardous Enclosure
• Polycarbonate lens
• Ingress Protection IP67 to EN60529:1992
• Weight (incl. cells) 25g / 60g

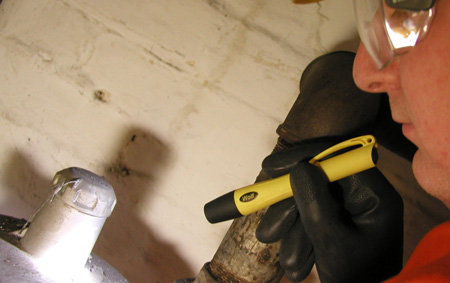

Pictured: Wolf Micro and Mini Torches For Hazardous Area Applications
