Wolf M-20 Mini Torch

Hazardous Area Torches, Zone 1 Zone 2



Wolf M-20 hazardous area torches are ATEX & IECEx certified for use in hazardous area Zones 1 & 2.

Wolf M-20 is an LED torch with “ia/ib” intrinsic safety type of protection for hazardous areas – using high power LED as the light source the M-20 provides an output of 15lm.

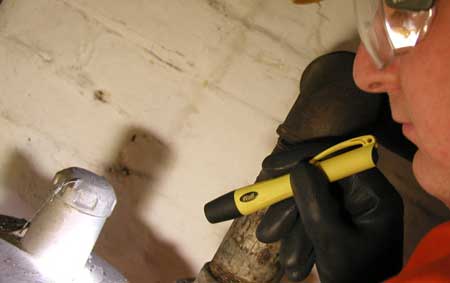

Pictured: Wolf M-20 Mini Torch Hazardous Area Zone 1 & Zone 2

Wolf M-20 Mini Torch Hazardous Area Zone 1 & Zone 2

Wolf M-20 Mini Torch Hazardous Area Zone 1 & Zone 2 - Features & Benefits

  • ATEX and IECEx Certified
  • T4/T5 temperature classWolf Safety
  • Ultra small size
  • Lightweight, ergonomic design
  • Proven impact resistanceATEX
  • Single handed switching
  • Switch protection shroud
  • Integral pen style pocket clip
  • IP67 water and dust tight
  • Gas and Dust Approval
  • Group I Mining Approval
Wolf M-20 Mini Torch Hazardous Area Zone 1 & Zone 2 - Technical Specification
Wolf Hazardous Area Torch Wolf Torch M-20
Torch description Xenon Mini Torch
Code  Industrial II 2 GD
Ex ib IIC T4 tD A21 IP67 T80°C
 Mining I M2 Ex ib I IP67
Type of protection “ia/ib” Intrinsic Safety
Area of classification (gas) Zones 1 & 2
Temp. classification (gas) T4
Ambient temperature -20°C to + 40°C
Area of classification (dust)  Zone 21 & 22
Max surface tempeature (dust) 80°C
Certification Baseefa06ATEX0084 - IECEx BAS 06.0023
Enclosure Impact resistant thermoplastic, electrostatic non-hazardous
Lens Polycarbonate
Beam type Narrow Spot

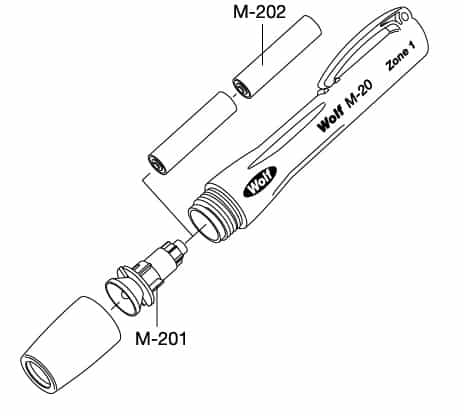

Light source:

 Pt. no. M-201
Type Xenon filled filament bulb
Rating 2.3V 0.3A
Output
15 lm
Life 30 hrs



Power source:

 Pt. no. M-202
(2 pack)
Type LR03 primary cells
to IEC60086
Volts 2 x 1.5V
Light duration up to 2.3 hrs
Ingress protection IP67 to EN60529:1992
Weight (incl. cells) 60g

Wolf M-20 Hazardous Area Torch

Wolf M-20 Hazardous Area Torch
