WIMES Approved Duct Seals Installed At Crossness Sewage Works

By Chris Dodds on 24th January, 2012

Follow @ThorneanDerrick

Water Industry Standard Duct Seal Kits (WIMES Approved).

CSD RISE Duct Seals



170no. CSD RISE Duct Seal Kits have been installed at Crossness Sewage Works by Imtech G&H Ltd as part of a £220m Thames Water upgrade.

The £25K order placed with T&D by Imtech G&H for CSD RISE Cable Duct Seal Kits ensures all 150mm diameter cable ducts are sealed against water, gas and fire at the inlet pumping station.

CSD Duct Seal Kits - Specifications, Technical Data, Installation Video.

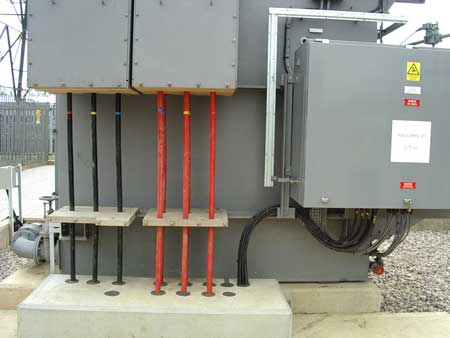

Pictured: CSD RISE Duct Seal System

Why CSD RISE?

CSD RISE Duct Seals - Thames Water, Case Study

Thames Water completed the upgrade of their Crossness Sewerage Treatment Works specifying RISE Duct Seals throughout the plant to seal all of the cable and pipe ducts against water, sewerage and gas ingress. Thames Water chose the RISE system based on the simple installation and high level of seal integrity it provided. Furthermore the RISE duct sealing system will also ensure a high performing gas and water tight seal for a period in excess of 50 years but with the benefit of easily adding or removing cables in the future.

Following the success at Crossness STW, Thames Water installed CSD RISE system to seal all of the cable and pipe ducts at 5 more of their sites including Ashford Common, Beckton and Battersea water treatment plants. The RISE Duct Sealing System provides an effective and simple solution to all fire, gas and watertight duct sealing requirements. It consists of only 2 components, rubber insert sleeves and FIWA, a silicone based sealant, making the system quick and easy to install. The elasticity and high bonding strength of the FIWA duct sealant offers a flexible seal which resists movement, shock and vibration as well as high pressures. CSD RISE system can be used in any shaped or sized duct and in vertical or horizontal ducts without need for a frame.

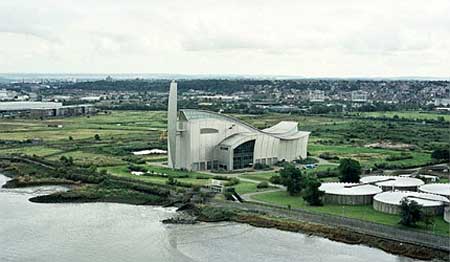

Pictured: Crossness Sewage Treatment Works

The RISE Duct Seal is approved in accordance with WIMES and is now being used by most of the Water Utility Companies and many of their contractors to seal their water and gas tight ducts. The RISE Duct Sealing System is used throughout the utility and construction industry to provide a high performing but simple solution to all fire, water and gas tight duct sealing applications.

The Water Industry Mechanical and Electrical Specifications (WIMES) define the requirements for mechanical and electrical equipment used in the UK Water Industry. The specifications take the form of descriptive text coupled with data sheets.

The WIMES documents have been produced with the co-operation and approval of the following Pump Centre member companies: Anglian Water, Bristol Water, Cambridge Water, Dwr Cymru (Welsh Water), Northern Ireland Water, Northumbrian Water, Scottish Water, Severn Trent Water, South West Water, Southern Water, Thames Water, United Utilities, Veolia Water, Wessex Water, Yorkshire Water.



Video : CSD RISE Water & Gas Tight Cable Duct Seals

CSD RISE Duct Sealing System Features

CSD RISE DUCT Benefits

Ensures DSEAR compliance even in heavily filled cable ducts Easy re-entry for adding, removing or replacing cables Provides 50 years protection with no maintenance High levels of water and gas tightness Up to four hours fire protection when using the RISE fire resistant sleeves, type FRR/LEHF Quick and easy to install in both horizontal and vertical ducts No frame required and can seal irregular shaped openings Seals ducts in some running water conditions Suitable for Trefoil and large power cables Resistant to Methane, Hydrogen Sulphide and Chlorine Resistant to submersion in petrol, diesel and transformer oils Complies with ATEX regulations

Testing Standards

Lloyds Register - 1.5 & 2.5 Bar pressure tests with multiple services passing through the conduit TNO Laboratory - Age Tested to prove sealing performance for 50 years TNO Laboratory - Submersion test in petrol and diesel oils TNO Laboratory - Resistance to salt laden atmospheres and solar radiation BS EN1366-3 Fire Test - 4 hour fire protection DEF Stan 02-711 - Low Smoke Index DEF Stan 02-713 - Low Toxicity Index ISO4589-3 - High Temperature Index ISO4589-2 - High Oxygen Index
