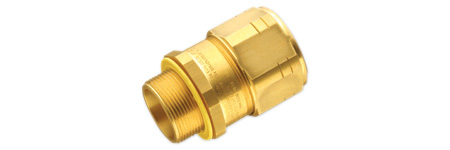

Hazardous Area Flameproof Group I Cable Gland

Thomas & Betts Hazardous Area Flameproof Group I Cable Gland Approvals

Cable glands constructed from either brass or stainless steel, the Hazardous Area Group I Flameproof Cable Gland is a high quality, high specification product, ideal for Ex I & II 2 GD gas and dust, Exde IIC and Exe II applications.

Thomas & Betts Hazardous Area Flameproof Group I Cable Gland

Hazardous Area Flameproof Group I Cable Gland Certifications & Standards

  • Approved to IEC EN 60079-0, 60079-1, 60079-7, 60079-31
  • EC TYPE Examination Certificate: ATEX: Sira 09ATEX1231X, IECEx: IECEx SIR09.0103X, Ex de I Mb, Ex de IIC Gb, Ex tb IIIC Db
  • NEC/CEC: CSA File No: 060582, Class I Div 2 ABCD Class II Div 1 EFG, Class 1 Zone 2 Group IIA IIB IIC
  • -60ºC to +130ºC Safe operating temperature range
  • IP66 rating

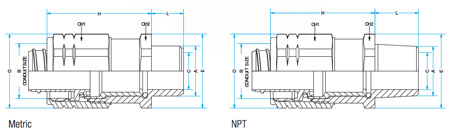

 G1 Liquid Tight Conduit Fitting Ex d e Flameproof Barrier Gland

Thomas & Betts Group I Nickel Plated Flameproof Gland Specifications
Part No Finish Metric Thread Conduit Size B Cable Gland Dimensions
C D E L H CH1 CH2
HAMM 0304G1 Nickel Plated M20 16 mm 10 mm 34 mm 31 mm 15 mm 50 mm 32 mm 28.6 mm
HAMM 0404G1 Nickel Plated M20 20 mm 12.5 mm 34 mm 31 mm 15 mm 50 mm 32 mm 28.6 mm
HAMM 0505G1 Nickel Plated M25 25 mm 18.4 mm 37 mm 37 mm 15 mm 50 mm 34 mm 34 mm
HAMM 0606G1 Nickel Plated M32 32 mm 24.7 mm 45 mm 45 mm 15 mm 50 mm 42 mm 42 mm
HAMM 0707G1 Nickel Plated M40 40 mm 29.7 mm 57 mm 54 mm 15 mm 57 mm 52 mm 50 mm
HAMM 0808G1 Nickel Plated M50 50 mm 41.7 mm 64 mm 64 mm 15 mm 58 mm 60 mm 60 mm
HAMM 0909G1 Nickel Plated M63 63 mm 51.7 mm 78 mm 76.2 mm 15 mm 70.6 mm 69.7 mm 70 mm
Part No Finish NPT Thread Conduit Size B Cable Gland Dimensions
C D E L H CH1 CH2
HAAM 0304G1 Nickel Plated 1/2 16 mm 10 mm 34 mm 31 mm 20.2 mm 50 mm 32 mm 28.6 mm
HAAM 0404G1 Nickel Plated 1/2 20 mm 12.5 mm 34 mm 31 mm 20.2 mm 50 mm 32 mm 28.6 mm
HAAM 0505G1 Nickel Plated 3/4 25 mm 18.4 mm 37 mm 37 mm 20.2 mm 50 mm 34 mm 34 mm
HAAM 0606G1 Nickel Plated 1 32 mm 24.7 mm 45 mm 45 mm 25 mm 50 mm 42 mm 42 mm
HAAM 0707G1 Nickel Plated 1 1/4 40 mm 29.7 mm 57 mm 54 mm 25.6 mm 57 mm 52 mm 50 mm
HAAM 0808G1 Nickel Plated 1 1/2 50 mm 41.7 mm 64 mm 64 mm 26 mm 58 mm 60 mm 60 mm
HAAM 0909G1 Nickel Plated 2 63 mm 51.7 mm 78 mm 76.2 mm 27 mm 70.6 mm 69.7 mm 70 mm



Thomas & Betts Group I Brass Flameproof Gland Specifications
Part No Finish Metric Thread Conduit Size B Cable Gland Dimensions
C D E L H CH1 CH2
HAM 0304G1 Brass M20 16 mm 10 mm 34 mm 31 mm 15 mm 50 mm 32 mm 28.6 mm
HAM 0404G1 Brass M20 20 mm 12.5 mm 34 mm 31 mm 15 mm 50 mm 32 mm 28.6 mm
HAM 0505G1 Brass M25 25 mm 18.4 mm 37 mm 37 mm 15 mm 50 mm 34 mm 34 mm
HAM 0606G1 Brass M32 32 mm 24.7 mm 45 mm 45 mm 15 mm 50 mm 42 mm 42 mm
HAM 0707G1 Brass M40 40 mm 29.7 mm 57 mm 54 mm 15 mm 57 mm 52 mm 50 mm
HAM 0808G1 Brass M50 50 mm 41.7 mm 64 mm 64 mm 15 mm 58 mm 60 mm 60 mm
HAM 0909G1 Brass M63 63 mm 51.7 mm 78 mm 76.2 mm 15 mm 70.6 mm 69.7 mm 70 mm
Part No Finish NPT Thread Conduit Size B Cable Gland Dimensions
C D E L H CH1 CH2
HAA 0304G1 Brass 1/2 16 mm 10 mm 34 mm 31 mm 20.2 mm 50 mm 32 mm 28.6 mm
HAA 0404G1 Brass 1/2 20 mm 12.5 mm 34 mm 31 mm 20.2 mm 50 mm 32 mm 28.6 mm
HAA 0505G1 Brass 3/4 25 mm 18.4 mm 37 mm 37 mm 20.2 mm 50 mm 34 mm 34 mm
HAA 0606G1 Brass 1 32 mm 24.7 mm 45 mm 45 mm 25 mm 50 mm 42 mm 42 mm
HAA 0707G1 Brass 1 1/4 40 mm 29.7 mm 57 mm 54 mm 25.6 mm 57 mm 52 mm 50 mm
HAA 0808G1 Brass 1 1/2 50 mm 41.7 mm 64 mm 64 mm 26 mm 58 mm 60 mm 60 mm
HAA 0909G1 Brass 2 63 mm 51.7 mm 78 mm 76.2 mm 27 mm 70.6 mm 69.7 mm 70 mm



Thomas & Betts Group I Stainless Steel Flameproof Gland Specifications
Part No Finish Metric Thread Conduit Size B Cable Gland Dimensions
C D E L H CH1 CH2
HAMS 0304G1 Stainless Steel M20 16 mm 10 mm 34 mm 31 mm 15 mm 50 mm 32 mm 28.6 mm
HAMS 0404G1 Stainless Steel M20 20 mm 12.5 mm 34 mm 31 mm 15 mm 50 mm 32 mm 28.6 mm
HAMS 0505G1 Stainless Steel M25 25 mm 18.4 mm 37 mm 37 mm 15 mm 50 mm 34.9 mm 34 mm
HAMS 0606G1 Stainless Steel M32 32 mm 24.7 mm 45 mm 45 mm 15 mm 50 mm 42.5 mm 42 mm
HAMS 0707G1 Stainless Steel M40 40 mm 29.7 mm 57 mm 54 mm 15 mm 57 mm 52 mm 50 mm
HAMS 0808G1 Stainless Steel M50 50 mm 41.7 mm 64 mm 64 mm 15 mm 58 mm 60 mm 60 mm
HAMS 0909G1 Stainless Steel M63 63 mm 51.7 mm 78 mm 76.2 mm 15 mm 70.6 mm 69.7 mm 70 mm
Part No Finish NPT Thread Conduit Size B Cable Gland Dimensions
C D E L H CH1 CH2
HAAS 0304G1 Stainless Steel 1/2 16 mm 10 mm 34 mm 31 mm 20.2 mm 50 mm 32 mm 28.6 mm
HAAS 0404G1 Stainless Steel 1/2 20 mm 12.5 mm 34 mm 31 mm 20.2 mm 50 mm 32 mm 28.6 mm
HAAS 0505G1 Stainless Steel 3/4 25 mm 18.4 mm 37 mm 37 mm 20.2 mm 50 mm 34.9 mm 34 mm
HAAS 0606G1 Stainless Steel 1 32 mm 24.7 mm 45 mm 45 mm 25 mm 50 mm 42.5 mm 42 mm
HAAS 0707G1 Stainless Steel 1 1/4 40 mm 29.7 mm 57 mm 54 mm 25.6 mm 57 mm 52 mm 50 mm
HAAS 0808G1 Stainless Steel 1 1/2 50 mm 41.7 mm 64 mm 64 mm 26 mm 58 mm 60 mm 60 mm
HAAS 0909G1 Stainless Steel 2 63 mm 51.7 mm 78 mm 76.2 mm 27 mm 70.6 mm 69.7 mm 70 mm
