Hawke Hazardous Area Cable Glands

Flameproof Exd / Increased Safety Exe / Dust Extb / Dual Certified

ATEX & IECEx - Zone 1, Zone 2, Zone 21 & Zone 22

Hawke ICG 653/ Universal Cable Glands



Hawke ICG 653/ Universal cable gland is suitable for indoor and outdoor cable termination in hazardous areas, Exd and Exe. For use with single wire armour ‘W’, wire braid ‘X’ and steel tape armour ‘Z’ elastomer and plastic insulated cables.

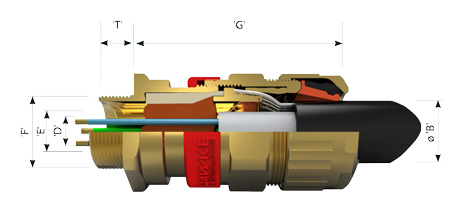

Pictured: Hawke ICG 653/Universal Hazardous Area Cable Gland

Hawke ICG 653/Universal cable glands are for particular use with the following:-

• Cable inner sheaths that are not effectively filled, compact and/or circular, have tape bedding or have hygroscopic fillers
• Cables that exhibit ‘cold flow’ characteristics
• Enclosures containing an ignition source in gas group IIC areas or containing an ignition source in a Zone 1 area

Hawke ICG 653/Universal Cable Gland Features

• Hawke ICG 653/Universa provides an inspectable, repairable barrier seal to the individual insulated cores within the cable, and prevents entry of the products of an explosion into the cable
• Provides armour clamping, using one clamping arrangement for all armour / braid types
• Hawke hazardous area glands provide an outer deluge seal to prevent moisture ingress to the cable armour / braid
• Provides a cable retention and low smoke and fume, zero halogen seal onto the cables outer sheath
• Manufactured in Brass (standard), Nickel Plated Brass, 316 Stainless Steel or Aluminium
• Brass NPT entries are nickel plated as standard





Hawke ICG 653/Universal Hazardous Area Cable Gland Specifications

Size Ref	Entry Thread 'F'	Cable Acceptance Details					'G'	Hexagon Dimensions
		Inner Sheath/ Cores		Outer Sheath 'B'	Armour/ Braid 'C'
		'D' Max Over Cores	Max Inner Sheath 'E'		Orien-tation 1	Orien-tation 2		Across Flats	Across Corners
Os	M20	8.9mm	10mm	5.5mm - 12mm	0.8mm/ 1.25mm	0mm/ 0.8mm	67 mm	24mm	26.5mm
O	M20	8.9mm	10mm	9.5mm - 16mm	0.8mm/ 1.25mm	0mm/ 0.8mm	67 mm	24mm	26.5mm
A	M20	11mm	12.5 mm	12.5mm -20.5mm	0.8mm/ 1.25mm	0mm/ 0.8mm	67 mm	30mm	32.5mm
B	M25	16.2mm	18.4 mm	16.9mm - 26mm	1.25mm/ 1.6mm	0mm/ 0.7mm	73.6 mm	36mm	39.5mm​
C	M32	21.9mm	24.7 mm	22mm - 33mm	1.6mm/ 2mm	0mm/ 0.7mm​	78 mm	46mm	50.5mm​
C2	M40	26.3mm	29.7 mm	28mm - 41mm	1.6mm/ 2mm	0mm/ 0.7mm​	82.4 mm	55mm	60.6mm
D	M50	37.1mm	41.7 mm	36mm - 52.6mm	1.8mm/ 2.5mm	0mm/ 1mm​	88.7 mm	65mm	70.8mm
E	M63	47.8mm	53.3 mm	46mm - 65.3mm	1.8mm/ 2.5mm	0mm/ 1mm​​	92.7 mm	80mm	88mm
F	M75	59mm	66.2 mm/ 65.3 mm	57mm - 78mm	1.8mm/ 2.5mm	0mm/ 1mm​​	99.4 mm	95mm	104mm
