Ellis Patents Stainless Steel Cable Cleats: Fault Current Rated For HV Cables

By Chris Dodds on 28th January, 2013

Follow @ThorneanDerrick

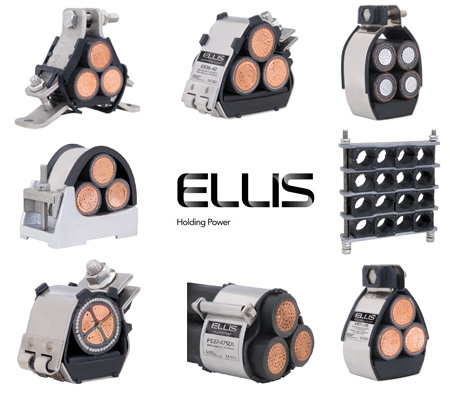

Ellis Patent Cable Cleats

Ellis Patents Stainless Steel Cable Cleats - Emperor



Ellis Patents type 316 stainless steel cable cleats offer excellent corrosion protection for oil, gas, petrochem and industrial cable supports. Ellis cleats are available with optional integral cable cleat liner, zero halogen, which emits low smoke and fumes in the event of a fire.

The cable cleat liner also provides protection for the LV-HV cable and cushions cables during short-circuit conditions. The compact design of Ellis Cable Cleats ensures the cleats occupy minimal space on cable ladder rungs or cable trays - quick and easy to install.

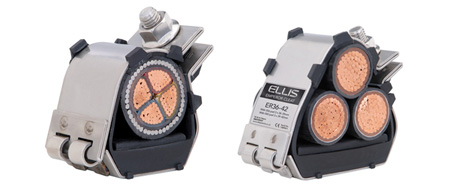

Ellis Patents Emperor Cable Cleats

The Emperor cable cleat range offers the ultimate protection against the harshest conditions, and its unique design means it can be quickly installed. The Emperor stainless steel cleats are manufactured in Type 316L stainless steel, and are available in multiple sizes with range-taking capability, to suit trefoil or single cables.

• Emperor Cleats Meet EN 50368:2003
• Short Circuit Withstand Tested to 72kA rms (154kA peak)
• Trefoil & Single Cable Cleats for Industrial, High Voltage & Hazardous Area Cable Clamping with Highest Short Circuit Protection Levels

Emperor cable cleats are available for single core, trefoil and multi-core cable cleat applications where the highest levels of short circuit withstand are required. Ellis Patents Emperor stainless steel cable cleats provide reliable high short-circuit withstand and are in widespread service on low and high voltage power cable installations.



Ellis Patents Single Emperor Cable Cleat Specifications

Part No	Cable Range Dia	Dimensions					Weight
		W	H	D	P	Fixing Holes
Ellis Patents ES32-39	32mm - 39mm	91 mm	89 mm	54 mm	25mm	2xM10+1xM12	450g
Ellis Patents ES37-45	37mm - 45mm	96 mm	93 mm	54 mm	25mm	2 x M10 + 1 x M12	470g
Ellis Patents ES44-52	44mm - 52mm	99 mm	98 mm	54 mm	25mm	2 x M10 + 1 x M12	480g
Ellis Patents ES51-59	51mm - 59mm	103 mm	102 mm	54 mm	25mm	2 x M10 + 1 x M12	490g
Ellis Patents ES58-66	58mm - 66mm	109 mm	101 mm	54 mm	25mm	2 x M10+ 1 x M12	500g
Ellis Patents ES65-73	65mm - 73mm	111 mm	103 mm	54 mm	25mm	2 x M10 + 1 x M12	510g
Ellis Patents ES73-85	73mm - 85mm	135 mm	112 mm	54 mm	50mm	2 x M10 + 1 x M12	640g
Ellis Patents ES84-94	84mm - 94mm	135 mm	135 mm	54 mm	50mm	2 x M10 + 1 x M12	660g
Ellis Patents ES94-118	94mm - 118mm	160 mm	150 mm	54 mm	50mm	2 x M10 + 1 x M12	710g
Ellis Patents ES118-130	118mm - 130mm	175 mm	160 mm	54 mm	75mm	2 x M10 + 1 x M12	900g
Ellis Patents ES127-150	127mm - 150mm	180 mm	180 mm	54 mm	75mm	2 x M10 + 1 x M12	940g



Ellis Patents Trefoil Emperor Cable Cleat Specifications

Part No	Cable Range Dia	Dimensions					Weight
		W	H	D	P	Fixing Holes
Ellis Patents ER19-23	19mm - 23mm	96 mm	83 mm	54 mm	25mm	2xM10+1xM12	425g
Ellis Patents ER23-28	23mm - 28mm	96 mm	83 mm	54 mm	25mm	2 x M10 + 1 x M12	425g
Ellis Patents ER27-32	27mm - 32mm	97 mm	88 mm	54 mm	25mm	2 x M10 + 1 x M12	440g
Ellis Patents ER30-35	30mm - 35mm	99 mm	91 mm	54 mm	25mm	2 x M10 + 1 x M12	445g
Ellis Patents ER33-38	33mm - 38mm	103 mm	95 mm	54 mm	25mm	2 x M10+ 1 x M12	460g
Ellis Patents ER36-42	36mm - 42mm	124 mm	100 mm	54 mm	50mm	2 x M10 + 1 x M12	600g
Ellis Patents ER40-46	40mm - 46mm	125 mm	106 mm	54 mm	50mm	2 x M10 + 1 x M12	605g
Ellis Patents ER44-50	44mm - 50mm	130 mm	117 mm	54 mm	50mm	2 x M10 + 1 x M12	630g
Ellis Patents ER48-55	48mm - 55mm	132 mm	121 mm	54 mm	50mm	2 x M10 + 1 x M12	640g
Ellis Patents ER51-58	51mm - 58mm	136 mm	128 mm	54 mm	50mm	2 x M10 + 1 x M12	650g
Ellis Patents ER55-62	55mm - 62mm	160 mm	135 mm	54 mm	75mm	2 x M10 + 1 x M12	810g
Ellis Patents ER59-66	59mm - 66mm	163 mm	143 mm	54 mm	75mm	2 x M10 + 1 x M12	825g
Ellis Patents ER63-70	63mm - 70mm	166 mm	151 mm	54 mm	75mm	2 x M10 + 1 x M12	850g
Ellis Patents ER67-74	67mm - 74mm	169 mm	158 mm	54 mm	75mm	2 x M10 + 1 x M12	850g
Ellis Patents ER71-78	71mm - 78mm	172 mm	165 mm	54 mm	75mm	2 x M10 + 1 x M12	890g
Ellis Patents ER74-82	74mm - 82mm	177 mm	171 mm	54 mm	75mm	2 x M10 + 1 x M12	890g
Ellis Patents ER77-85	77mm - 85mm	183 mm	177 mm	54 mm	75mm	2 x M10 + 1 x M12	905g
Ellis Patents ER82-88	82mm - 88mm	191 mm	187 mm	54 mm	75mm	2 x M10 + 1 x M12	820g
Ellis Patents ER88-96	88mm - 96mm	207 mm	203 mm	54 mm	75mm	2 x M10 + 1 x M12	890g
Ellis Patents ER96-103	96mm - 103mm	221 mm	218 mm	54 mm	75mm	2 x M10 + 1 x M12	940g
Ellis Patents ER103-111	103mm - 111mm	237 mm	235 mm	54 mm	75mm	2 x M10 + 1 x M12	950g
Ellis Patents ER111-119	111mm - 119mm	253 mm	250 mm	54 mm	75mm	2 x M10 + 1 x M12	1010g
Ellis Patents ER119-128	119mm - 128mm	265 mm	275 mm	54 mm	75mm	2 x M10 + 1 x M12	1220g



Video: Ellis Patents Emperor Cable Cleats - Tested at 156kA
