Ellis Patents Emperor Cable Cleats Are Installed At The North Sea Golden Eagle Development

By Chris Dodds on 31st August, 2012

Follow @ThorneanDerrick

Ellis Patents Cable Cleats

Ellis Patents Emperor Cable Cleats




Ellis Patents cable cleats, has landed a major order to supply the first of two new oil platforms currently being built by Nexen Petroleum U.K. Limited for use in the North Sea’s Golden Eagle Area Development (GEAD).

The Yorkshire manufacturer’s Emperor cable cleats, which are designed for use where the highest level of short circuit withstand are required, were specified by Nexen and supplied through MacLean Electrical’s International Projects Group, which secured the contract for supply of the project's electrical bulk materials and cables.

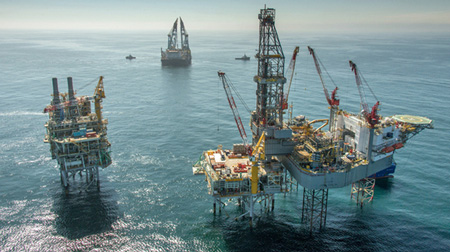

Pictured: North Sea Golden Eagle Area Development

Nexen’s Golden Eagle field is situated around 70km offshore from the UK coast and is due to go into production in 2014.

The company is building a twin platform complex featuring two subsea drilling centres with up to 24 wells. One of the platforms will be a wellhead facility, which will be linked via a 70-metre bridge to a major production, utility and quarters (PUQ) platform. Both will stand on new steel jackets.

Paul Nolan, UK sales manager for Ellis, said: “We’ve enjoyed a great deal of recent success in the oil and gas industry, with major specifications secured for offshore developments in Australia, Brazil and Kazakhstan, but as a UK manufacturer it is extremely satisfying to add a big North Sea order to this list.”

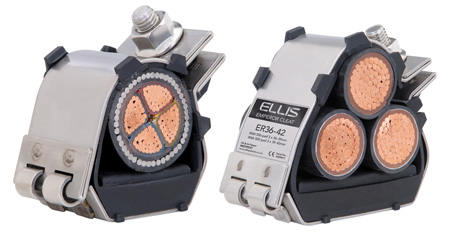

Pictured: Ellis Patents Emperor Cable Cleats (Single & Trefoil)

Explaining the need for correctly specified cable cleats on offshore installations, Paul Nolan added: “For any electrical installation, whether on or offshore, to be deemed safe, cables need to be restrained in a manner that can withstand the forces they generate, including those generated during a short circuit, and this is exactly what cable cleats are designed to do. Without them, the dangers are plentiful – costly damage to cables and cable management systems, plus the risk to life posed by incorrectly or poorly restrained live cables."

Ellis’ Emperor cleats are manufactured in type 316L stainless steel, meaning they provide ultimate corrosion protection, even in the harshest of environments.

The benefits of the Emperor cleats also extend to a patented design that makes installation quick and easy, and an integral LSF zero halogen polymeric liner and base pad that protects and cushions cables during short circuit conditions.

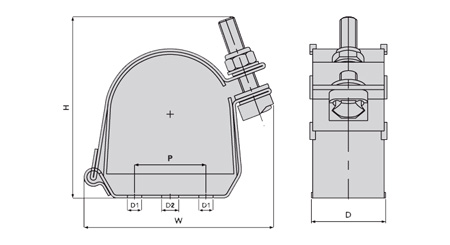

Ellis Patents Single Emperor Cable Cleat Specifications

Part No	Cable Range Dia	Dimensions					Weight
		W	H	D	P	Fixing Holes
Ellis Patents ES32-39	32mm - 39mm	91 mm	89 mm	54 mm	25mm	2xM10+1xM12	450g
Ellis Patents ES37-45	37mm - 45mm	96 mm	93 mm	54 mm	25mm	2 x M10 + 1 x M12	470g
Ellis Patents ES44-52	44mm - 52mm	99 mm	98 mm	54 mm	25mm	2 x M10 + 1 x M12	480g
Ellis Patents ES51-59	51mm - 59mm	103 mm	102 mm	54 mm	25mm	2 x M10 + 1 x M12	490g
Ellis Patents ES58-66	58mm - 66mm	109 mm	101 mm	54 mm	25mm	2 x M10+ 1 x M12	500g
Ellis Patents ES65-73	65mm - 73mm	111 mm	103 mm	54 mm	25mm	2 x M10 + 1 x M12	510g
Ellis Patents ES73-85	73mm - 85mm	135 mm	112 mm	54 mm	50mm	2 x M10 + 1 x M12	640g
Ellis Patents ES84-94	84mm - 94mm	135 mm	135 mm	54 mm	50mm	2 x M10 + 1 x M12	660g
Ellis Patents ES94-118	94mm - 118mm	160 mm	150 mm	54 mm	50mm	2 x M10 + 1 x M12	710g
Ellis Patents ES118-130	118mm - 130mm	175 mm	160 mm	54 mm	75mm	2 x M10 + 1 x M12	900g
Ellis Patents ES127-150	127mm - 150mm	180 mm	180 mm	54 mm	75mm	2 x M10 + 1 x M12	940g

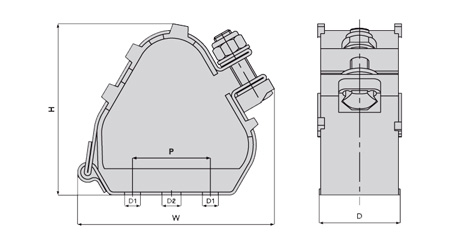

Ellis Patents Trefoil Emperor Cable Cleat Specifications

Part No	Cable Range Dia	Dimensions					Weight
		W	H	D	P	Fixing Holes
Ellis Patents ER19-23	19mm - 23mm	96 mm	83 mm	54 mm	25mm	2xM10+1xM12	425g
Ellis Patents ER23-28	23mm - 28mm	96 mm	83 mm	54 mm	25mm	2 x M10 + 1 x M12	425g
Ellis Patents ER27-32	27mm - 32mm	97 mm	88 mm	54 mm	25mm	2 x M10 + 1 x M12	440g
Ellis Patents ER30-35	30mm - 35mm	99 mm	91 mm	54 mm	25mm	2 x M10 + 1 x M12	445g
Ellis Patents ER33-38	33mm - 38mm	103 mm	95 mm	54 mm	25mm	2 x M10+ 1 x M12	460g
Ellis Patents ER36-42	36mm - 42mm	124 mm	100 mm	54 mm	50mm	2 x M10 + 1 x M12	600g
Ellis Patents ER40-46	40mm - 46mm	125 mm	106 mm	54 mm	50mm	2 x M10 + 1 x M12	605g
Ellis Patents ER44-50	44mm - 50mm	130 mm	117 mm	54 mm	50mm	2 x M10 + 1 x M12	630g
Ellis Patents ER48-55	48mm - 55mm	132 mm	121 mm	54 mm	50mm	2 x M10 + 1 x M12	640g
Ellis Patents ER51-58	51mm - 58mm	136 mm	128 mm	54 mm	50mm	2 x M10 + 1 x M12	650g
Ellis Patents ER55-62	55mm - 62mm	160 mm	135 mm	54 mm	75mm	2 x M10 + 1 x M12	810g
Ellis Patents ER59-66	59mm - 66mm	163 mm	143 mm	54 mm	75mm	2 x M10 + 1 x M12	825g
Ellis Patents ER63-70	63mm - 70mm	166 mm	151 mm	54 mm	75mm	2 x M10 + 1 x M12	850g
Ellis Patents ER67-74	67mm - 74mm	169 mm	158 mm	54 mm	75mm	2 x M10 + 1 x M12	850g
Ellis Patents ER71-78	71mm - 78mm	172 mm	165 mm	54 mm	75mm	2 x M10 + 1 x M12	890g
Ellis Patents ER74-82	74mm - 82mm	177 mm	171 mm	54 mm	75mm	2 x M10 + 1 x M12	890g
Ellis Patents ER77-85	77mm - 85mm	183 mm	177 mm	54 mm	75mm	2 x M10 + 1 x M12	905g
Ellis Patents ER82-88	82mm - 88mm	191 mm	187 mm	54 mm	75mm	2 x M10 + 1 x M12	820g
Ellis Patents ER88-96	88mm - 96mm	207 mm	203 mm	54 mm	75mm	2 x M10 + 1 x M12	890g
Ellis Patents ER96-103	96mm - 103mm	221 mm	218 mm	54 mm	75mm	2 x M10 + 1 x M12	940g
Ellis Patents ER103-111	103mm - 111mm	237 mm	235 mm	54 mm	75mm	2 x M10 + 1 x M12	950g
Ellis Patents ER111-119	111mm - 119mm	253 mm	250 mm	54 mm	75mm	2 x M10 + 1 x M12	1010g
Ellis Patents ER119-128	119mm - 128mm	265 mm	275 mm	54 mm	75mm	2 x M10 + 1 x M12	1220g
