Stabex Ex-Torchlights For Hazardous Areas Zones 1 & 2

Hazardous Area Lighting For Zones 1 & 2

Stabex Ex-Torchlights

Stabex mini / Stabex mini II / Stabex mini LED / Stabex HF / Stabex MO



The Stabex mini, Stabex mini II, Stabex LED, Stabex HF and the Stabex HF-L range of explosion-protected torchlights meets the requirements of the ATEX-Directive 94/9/EG. The torchlights have been conceived for use in Zone 1 and Zone 2.

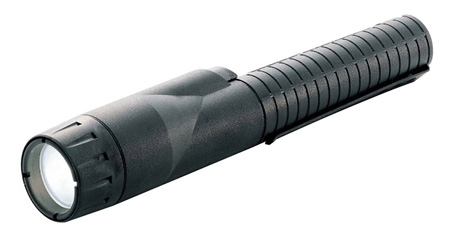

Pictured: Stabex Mini Hazardous Area Ex-Torchlight

Stabex Mini Hazardous Area Ex-Torchlight

The Stabex mini II and mini LED are also suitablel for the Zones 21 and 22 and the Stabex HF and HF-L are also for use in the Zone 20. These torchlights have a temperature classification of T5/ T4 meaning they can be used in nearly any hazardous area. Stabex torches are perfect for security patrols and inspection duties.

Stabex Hazardous Area Ex-Torchlights Features

  • Single-handed operation
  • even with work gloves
  • Degree of protection IP65
  • Light cone can be focused – Stabex mini II/LED/ HF/HF-L Halogen bulb – HF Stabex HF/HF-L
  • Scratch resistant mineral glass
  • International Approvals

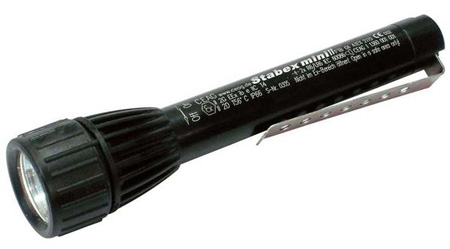

Pictured: Stabex Mini II Explosion Proof Torch

Stabex Mini II Torch

ATEX Certified Explosion Proof Stabex Mini II Torch

Stabex Mini II explosion proof torchlight meets the requirements of ATEX Directive 94/9/EC and is certified for use in potentially explosive gas atmospheres in Zones 1 and Zones 2 - Stabex Mini II ATEX torch is suitable for potentially explosive dust atmospheres in Zones 21 and Zones 22. Due to the temperature class T4 and low surface temperature, the Stabex torchlight can be used in almost any hazardous area for control, search and inspection lighting tasks. The ATEX certified Stabex torch design permits the changing of batteries outside the hazardous area with no special tools. Stabex torch features IP66 ingress protection for reliable service in industrial and hazardous area lighting applications.

Stabex Mini Range Technical Data


Stabex Mini II

Stabex Mini LED

Stabex Mini

Marking to 94/9/EC

Ex II 2 G Ex e ib IIC T4

Ex II 2 D Ex tD A21 IP66 T56°C

Ex II 2 G Ex e ib IIC T4

ExII 2 D Ex tD A21 IP66 T85°C

Ex II 2 G Ex e ib IIC T4 Gb

Permissible Ambient Temperature

-20°C to +40°C

Specified data: 0°C to +30°C (battery)

-20°C to +40°C/ +50°C

Specified data: 0°C to +30 C (battery)

-20°C to +40°C

Specified data: 0°C to +30°C

Luminous Flux

Approx. 10lm

Approx. 20lm

7lm

Battery

2 dry cell AA-size IEC 60086 R 6/LR 6

3 dry cell AA-size IEC 60086 R 6/LR 6

2 dry cell AA-size IEC 60086 R 6/LR 6

Rated Operating Duration

Approx. 8h

Approx. 8h

Approx. 8h

Degree Of Protection Accd. EN 60529

IP66

IP66

IP65

Dimension

(L x W x H)

154 x Ø 34mm

208 x Ø 34mm

166 x Ø 32 mm

Weight (without battery)

Approx. 0.09kg

Approx. 0.12kg

Approx. 0.07 kg

Enclosure Material

Aluminium

Aluminium

Polycarbonate

Enclosure Colour

Black Black Black

Protective Cover /Protective Bowl

Ø 24mm, mineral glass

Ø 24mm, mineral glass

Ø 23mm, mineral glass

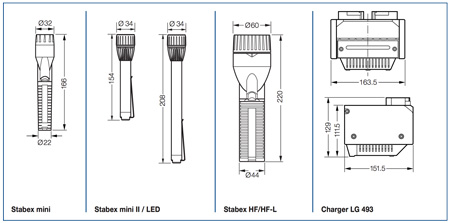

Stabex Ex-Torchlights Dimensions
