Smart Cable Cleat Clamps - Calculating Oglaend Smart Cleat Spacings On Cable Ladder Installations

Theoretical Background
Source: EFI report TR A3901 Jan 1993

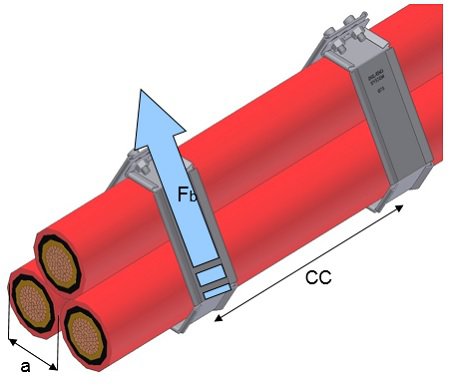

Fb=(0.5 x 0.2 x kApeak2)/a where:

  • Fb: Force (N/m)
  • kA.peak: Short circuit current peak value (kA)
  • a: Distance between the centre points of the cables/cable diameter
  • Cable run. Length of cable run

Recommended distance between Oglaend Smart Cleat clamps mounted on cable ladders

Recommended distance between Smart Cleat clamps mounted on cable ladders



The calculated number of clamps is included using SmartSecuringPlate in both ends of the cable run.

The distance between the clamps should be reduced in vertical and horizontal bends. The recommended maximum distance between Smart Cleats is 0.9m.

Recommended distance between Oglaend Smart Cleat clamps when not installed on cable ladder

Recommended distance between Smart Cleat clamps when not installed on cable ladder



At the start and at the end of the cable run it is recommended to install 3 cleats with 150mm distance between them. The calculation above is including these cable cleats.

The distance between the cleats must be reduced during vertical and horizontal bends. The maximum recommended distance between Smart Cleats is 0.9m.

Smart Securing Plates

Smart Securing Plates

Secure plates are strongly recommended to be used at both ends of a trefoil cable run. Realistic tests done on several cable lengths and clamp distances confirms the theory that the cable must be additionally secured at both ends to reduce arching and eliminate deformation and stretch marks on the cable.

Oglaend Smart Securing Plates
Type (State Ladder Width) Art. No. SS
A-OE EX-Smarcl-150 87544
A-OE EX-Smarcl-300 87545
A-OE EX-Smarcl-450 87546
A-OE EX-Smarcl-600 87547
A-OE EX-Smarcl-750 87548
A-OE EX-Smarcl-900 87549
The Smart Securing Plate is designed to fit all standard ladder types with 300 cc rungs. Includes our RZE and FRP systems.

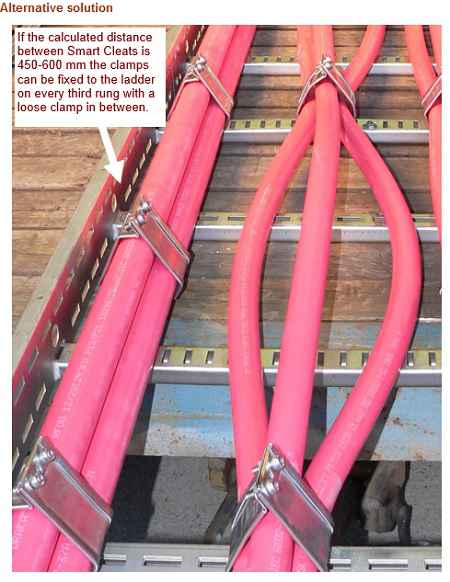

Alternative Solution

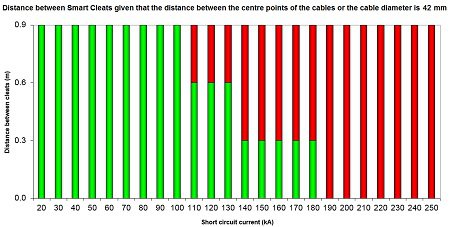

Distance between Smart Cleats given that the distance between the centre points of the cables or the cable diameter is 42mm

Distance between Smart Cleats given that the distance between the centre points of the cables or the cable diameter is 42mm
