Oglaend Smart Cleats - Trefoil & Single Cable Cleats

Oglaend Smart Cable Cleats

Single & Trefoil Cleats

Cable Diameters 25-99mm

Oglaend Smart Cable Cleats are suitable for single and trefoil high voltage cable cleating applications with cable diameters 25-99mm.

Pictured: Oglaend Smart Cleats - Trefoil & Single Cable Cleats

Oglaend Smart cable cleats resist extreme dynamic energy which can occur with powerful short circuits in low and high voltage power cable installations.

Oglaend Smart cable cleats are short circuit tested to 160 kA-Peak and are ideal for cleating and clamping high voltage (HV) power cables to cable ladder.

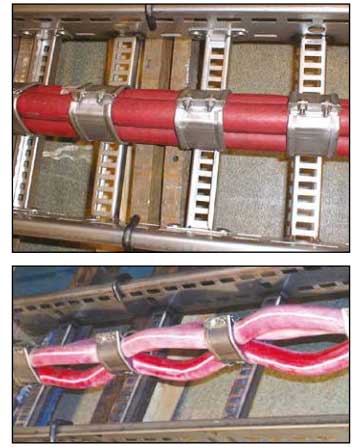

Picture : Oglaend Smart Cleats- Trefoil & Single Cable Cleats Installation

1. U-bracket in rungs is fastened using M6x40mm bolt. 2. Install the cables into cleats. 4. When the final cable is placed bend this side towards the nut side. 5. Allen key is placed in centre hole to align the holes for easier installation of the bolts. 6. Tighten the Smart Cleat with power drill.

Trefoil cable cleats and clamps are specified to provide short circuit retention generally to high voltage single core power cables installed in triangular (trefoil) form. Oglaend Smart Cleats are short circuit tested to 160 kA-peak.

Pictured : Oglaend Smart Cleats (Trefoil) - the choice of cable cleat spacing should be calculated in consultation with the cable manufacturers specification.



Video : Oglaend Smart Cable Cleats

Oglaend Smart Cleats - Trefoil & Single Cable Cleats

Oglaend Smart Cleats - Trefoil & Single Cable Cleats New Catalogue
