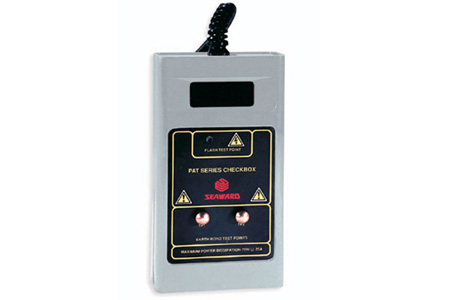

Seaward PAT Checkbox



The Seaward PAT Checkbox has been designed to provide a safe, accurate, simple and quick way of checking that Seaward PAT testers are working within specification in between periodic calibration of the instrument. The Seaward PAT Checkbox can also check PAT testers outside the Seaward range.

Seaward Portable Appliance Tester Checkbox Specifications

Earth Bond Reading	+/- 1% +/- 1 digit
Insulation Reading	+/- 1% +/- 1 digit
Flash Test Reading	+/- 1% +/- 1 digit
Earth Leakage Reading	+/- 1% +/- 1 digit



Video: PAT Checkbox Seaward - PAT Verification Unit



Video: PAT Checkbox Seaward - PAT Verification Unit Demo
