Sanding 132kV High Voltage Brugg Cable Joint

By Chris Dodds on 15th June, 2016

Follow @ThorneanDerrick

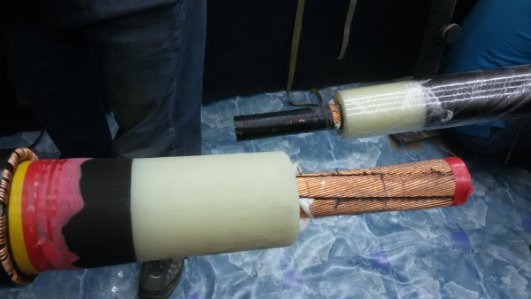

Image: Muhammad Ali 132kV Cable Jointer at Riyadh Cable KSA

Pictured: Sanding 132kV High Voltage Brugg Cable Joint



Sanding MV HV Power Cables

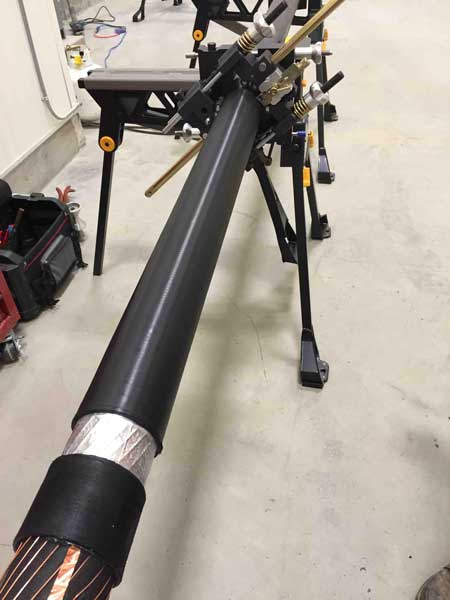

Alroc AMF5 55-160 tool can be used on HV-EHV tranmission and distribution cables with an outside diameter range of 55-160mm and is designed to make the removal of cable insulation simple and efficient with significantly reduced sanding required by the cable jointer using a lower grit abrasive.



Image : Jimmy Nicklin.



• Further reading

​​Brugg Straight Joint 132kV

​​Brugg EHV Straight Joint & Jointing Bay

Brugg Cable Tools For Jointing & Straightening HV EHV Cables
